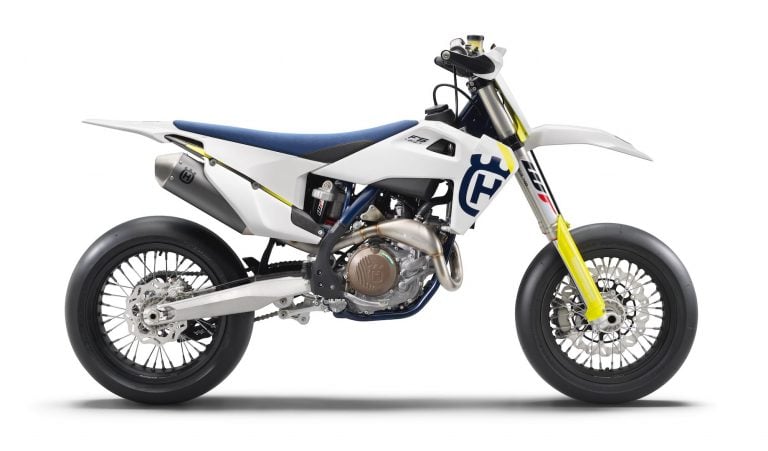

2019 Husqvarna FS 450 Supermoto Preview & Specs
The Husqvarna FS 450 Supermoto – a true OEM racer based on its FC 450 Motocross brother – has once again been updated.
The first major changes occurred in 2016 when the Swedish brand cut some weight, and then for 2018 when Husky upgraded the 450cc engine with a Suter slipper clutch and new map switch controls.
The updates continue for the 2019 Husqvarna FS 450 Supermoto, which sees major improvements in both chassis and engine updates.
1. The 2019 Husqvarna FS 450’s frame – now coated blue – was stiffened for improved rider feedback and straight-line stability. Out back, the composite carbon-fiber subframe’s weight was reduced by 0.6 pounds.
2. The 449.9cc single-cylinder four-stroke engine was updated with a redesigned cylinder head that further reduces weight and provides a more compact package. The engine, which produces 63 horsepower, loses a pound, and now weighs 60.2 pounds.
3. With all these weight changes, the 2019 Husqvarna FS 450 now weighs 226.9 pounds dry (without fuel in the 1.85-gallon tank). This is four pounds lighter than the 2018 FS 450 model.
4. The 2019 FS 450 is equipped with WP’s 48mm AER air fork and a WP DCC rear shock. The entire WP suspension package receives setting updates to match the updated frame rigidity. Husqvarna also says that the 16mm offset CNC machined triple clamps are specifically designed to work in harmony with the front forks.
6. The bodywork and ergonomics were slightly tweaked to match the updated handling and engine changes.
7. The 2019 Husqvarna FS 450 will arrive in dealers this September. US pricing has yet to be set, but expect to pay around $10,500 MSRP.
2019 Husqvarna FS 450 Supermoto (Overview of Updates)
- Redesigned bodywork
- Redesigned SOHC cylinder head (1.1 lb lighter)
- Blue coated frame featuring increased rigidity
- New 2-piece subframe design (0.6 lb lighter)
- Chain adjustment slot length increased by 5 mm
- Updated setting on the WP AER 48 forks
- WP DCC shock featuring new piston & updated setting
- 1.85 gal polythene fuel tank with new fuel line routing
- Alpina spoked wheels with Bridgestone slick tires
- ProTaper handlebar with new bend
- Traction & launch control with updated settings
- New throttle cable routing for easier maintenance
- Flow-designed resonance chamber & more compact silencer
- Updated cooling system with new center tube
- Magura hydraulic clutch with SUTER anti-hoping system
- High performance Brembo brakes
2019 Husqvarna FS 450 Supermoto Specs
|
ENGINE |
|
|
Engine type |
Single cylinder, 4-stroke |
|
Displacement |
449.9 cc |
|
Bore/stroke |
95/63.4 mm |
|
Compression ratio |
12.75:1 |
|
Starter/battery |
Electric starter / Lithium Ion 12V 2.0Ah |
|
Transmission |
5 gears |
|
Fuel system |
Keihin EFI, throttle body 44 mm |
|
Control |
4 V / SOHC with rocker levers |
|
Lubrication |
Pressure lubrication with 2 oil pumps |
|
Gear ratios |
16:32 18:30 20:28 22:26 24:24 – |
|
Primary ratio |
31:76 |
|
Final drive |
14:45 |
|
Cooling |
Liquid cooling |
|
Clutch |
SUTER Anti-hopping clutch, Magura hydraulics |
|
Ignition / Engine Management |
Keihin EMS |
|
CHASSIS |
|
|
Frame |
Central double-cradle-type 25CrMo4 steel |
|
Subframe |
Carbon fiber reinforced polyamide |
|
Handlebar |
Pro Taper, Aluminum Ø 28/22 mm |
|
Front suspension |
WP USD AER 48, Ø 48 mm |
|
Rear suspension |
WP Monoshock with linkage |
|
Suspension travel front/rear |
280/266 mm; 11/10.5 in |
|
Front/rear brakes |
Disc brake Ø 310/220 mm |
|
Front/rear rims |
3.50 x 16.5″ Alpina black, aluminum/5.00 x 17″Alpina black, aluminum |
|
Front/rear tires |
125/80-16.5″; 165/65-17″ |
|
Chain |
5/8 x 1/4″ |
|
Silencer |
Aluminum |
|
Steering head angle |
26.1° |
|
Triple clamp offset |
16 mm |
|
Wheel base |
1,475 ± 10 mm / 58 ± 0.4 in |
|
Ground clearance |
290 mm / 11.4 in |
|
Seat height |
890 mm 35 in |
|
Tank capacity, approx. |
7 l / 1.85 gal |
|
Weight, without fuel, approx. |
102.9 kg / 226.9 lb |
