Helmet Testing Failure Rate Revisited: Summer 2023 Edition

DOT Testing Failures

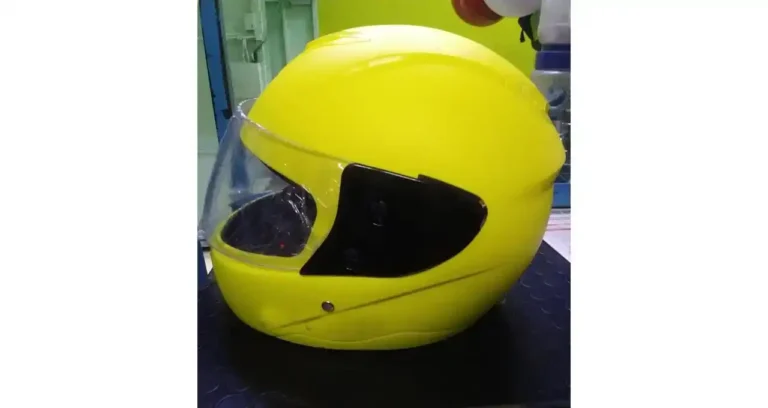

The DOT testing failure rate of generic helmets—though not necessarily this helmet, which is shown for illustration purposes only—reminds us of the importance of purchasing a respected brand.

In the past few years, I’ve looked at the data on the motorcycle helmet compliance reporting website of the Department of Transportation’s (DOT) National Highway Traffic Safety Administration (NHTSA). I evaluated the number of helmets claiming to be “DOT Certified” tested by the NHTSA’s independent labs that test helmets intended for road-going use in the United States.

Image 1: An external label on the shell of the helmet indicating “Snell” or something similar is allowed on helmets that have earned approval from the Snell Memorial Foundation, but it is not proof of approval. However, if Arai has it on its helmet, you can trust it is also on the inside.

Those laboratories are independent third-party entities not connected with helmet manufacturers, distributors, retailers, and other stakeholders. They are ACT Labs and Dynamic Research, both located in California. After they test each helmet specified by NHTSA, acquired at retail, and using test specifications in Federal Motor Vehicle Safety Standard 218 (FMVSS 218), they provide a detailed report on the procedures and results to NHTSA.

From there, the process is less apparent regarding the steps taken, by whom, and when. However, at some point, each result is reviewed. Where failures are documented, some process is used to assess the type of failure. Then it is decided what NHTSA will do about it, if anything. Options include further review, investigation, or enforcement action on up to an order to recall the product and/or civil money penalties.

Each time I have put together a report for a subsequent calendar year, I’ve added the total reports I have found on the NHTSA compliance website for that year, the number of helmets that failed to meet the FMVSS 218 standards on physical performance (impact attenuation, penetration resistance, and retention system strength), and the labeling requirements. I’ve also included data about whether an investigation took place, or a recall was ordered for those helmets that failed.

Helmet Testing Failure Rate Revisited: Summer 2023 Edition: Snell M2020D
Image 2: This type of official label must be present inside the helmet on the impact liner to confirm the make and model helmet has passed Snell Memorial Foundation tests, as it is on this Arai helmet.

Unfortunately, in all cases where the site provides an apparent link to an investigation or recall report, where ordered, only an “Error 404—not found” message is returned. When the new data was added, I didn’t go back to prior year reports to see if any additional reports had been added sometime since that calendar year data was analyzed.

On August 9, 2023, after seeing only 11 reports had been posted for the CY 2022 data after that year’s end, it seemed certain that more reports were to come. I looked back at the prior years I had done analytics on to see if there were other years with late-posted data.

It turns out there was a lot of data that had not been reported at the time of my prior analysis—some going back a few years, and the majority from CY 2019 (See Table 1). Because the data does not indicate the date each report was posted, I don’t know when these reports were published. Nearly two-thirds of the reports added were for helmets that had failed on physical performance. That may be merely a coincidence, or there may be some rational explanation. However, it seems not to be attributable to the time required to take corrective action, as only one additional recall was reported as being ordered by the NHTSA. Several reports still said, “under review.”

Helmet Testing Failure Rate Revisited - 2023
Image 3: The ECE 22.06 label on the exterior shell of a helmet is allowed as consumer information, but is not proof of approval. However, if AGV Helmets has the outside sticker, you can be sure it is certified.

My most recent previous look at the data, completed on May 17, 2023, found that 38.2 percent of the 228 helmets tested in the nine-year look-back period (to CY2014) failed to meet the physical performance standards in FMVSS 218. With the additional data accessed on August 9, 2023, that percentage went up to 43.9 percent of the 269 helmets NHTSA reports having tested (See Table 2.) Of the 118 helmets that failed, only 15 recalls (12.7 percent) resulted.

A 5.7 percent increase wouldn’t seem to be statistically significant, but considered in the context of how many additional brands and models that represents and the fact that tens of thousands of riders may be put at much higher risk of disability or death due to traumatic brain injury because the helmet failed to provide the level of protection the “DOT Certified” label promised. Worse, none of those helmet users would have been notified of the known defects of the failed helmets unless a recall was ordered or voluntarily undertaken by the manufacturer.

TABLE 1. ADDITIONAL NHTSA helmet test data analysis CY 2014 to CY 2022

Not Previously Reported on NHTSA Compliance Website. (Accessed as of 8/9/2023)

Year (CY)

Additional Total Tested (including all sizes) Total Additional Failed Additional Failed on Performance Additional Failed labeling only Additional Investigations

Additional Recalls

2022

0 0 0 0 0

0

2021

0 0 0 0 0

0

2020

6 6 6 0 0

0

2019

32 28 17 11 22

0

2018

2 2 1 1 2

0

2017

1 1 1 0 1

1

2016

0 0 0 0 0

0

2015

0 0 0 0 0

0

2014

0 0 0 0 0

0

Totals: 41 37 25 (61.0% of the additional helmets tested). 12 25 1



This information, when added to the data available for my last report, looks like this:

TABLE 2.   Summary of NHTSA Helmet Testing Data CY 2014 to CY 2022 (As of 8/9/2023)

Year (CY)

Total Tested (all sizes) Total Failed Failed on Performance Failed labeling only Investigations Recalls

2022

11 2 2 (2 failed on labeling also) 0 0

0

2021

24 15 10 (2 failed on labeling also) 5 3

0

2020

32 22 15 (7 failed on labeling also) 7 16

2

2019

57 47 26 (1 failed labeling also) 21 26

0

2018

22 20 13 (12 failed labeling also) 7 8

2

2017

35 18 11 (5 failed labeling also) 7 15

1

2016

24 13 9 (5 failed labeling also) 4 12

3

2015

33 19 16 (5 failed labeling also) 3 14

6

2014

31 19 16 (9 failed labeling also) 3 3

1

Totals:

269 175 118 (43.9% of those tested)

57



97

15



The data shows a higher than four-in-ten chance that if you spend your money on a helmet labeled as “DOT Certified” with no other certification, it may not perform to the level claimed by that certification label.

There are several reasons that could happen. For example, the FMVSS 218 standards allow “self-certification” by manufacturers, rather than requiring independent lab verification. Also, no documentation is required to prove any certification testing has been done by the manufacturer or anyone else. Finally, the DOT system is purely retrospective. That is, helmets must be labeled as DOT Certified, but need not be proven certified before they are allowed to be sold in the U.S. The NHTSA independent lab testing happens only after helmets are on the market. This was explained in more detail in our previous coverage at the link below.

While drawing conclusions about the reasons for the reports on so many helmets that failed on critical physical performance standards not showing up timely in public reporting is outside the scope of my work on this, it would be good to have an official explanation.

ECE Motorcycle Helmet Safety Label
Image 4: The official ECE label is to be found sewn or affixed to the helmet chin strap.

Instead, my focus in this work is three-fold. First, I’m letting motorcyclists and other powersports helmet users know about the failure rate among helmets claiming DOT Certification. Second, I’m suggesting strategies helmet users can use to improve their chances of paying for a helmet that has been tested before being placed on the market and proven to meet performance standards more rigorous than the DOT standards. Also, I am suggesting a simple, effective method for the DOT/NHTSA to implement rapid regulatory improvement. That strategy is deemed status for Snell Memorial Foundation, ECE 22.06, and FIM helmet standards already in use—all more rigorous than the DOT FMVSS 218 standards, where “self-certification” is not allowed, as explained here.

Consumers can override the DOT standards’ shortcomings by buying a helmet that has earned multiple certifications. The helmet would be labeled “DOT Certified” and display the Snell Memorial Foundation, ECE 22.05, ECE 22.06, or FIM labeling. The government of Canada adopted ECE helmet standards as acceptable helmet safety certification back in 2012.

It is important to note that while DOT requires the claimed certification to be on the back exterior of the helmet, the other standards allow external helmet labeling. Regardless, those standard-setting organizations do not accept that as the correct, official labeling.

Although most helmets that have earned Snell Memorial Foundation certification will be labeled on the exterior of the shell (Image 1), that does not prove the helmet is approved by Snell. That can only be confirmed by the official labeling required by Snell Memorial Foundation—a label applied to the helmet’s interior impact-absorbing liner—usually a layer of expanded polystyrene (EPS) that lies beneath the padded comfort liner (Image 2).

Helmet Testing Failure Rate Revisited : FIM
Image 5: Official FIM helmet certification is confirmed by a QR code and hologram on the chin strap.

Similarly, most helmets that have earned ECE 22.05 or 22.06 certification will display some notation on the external shell, but that should not be accepted alone as proof of certification (Image 3). Official labeling for the ECE-compliant helmets is sewn to the chin strap (Image 4). FIM-compliant helmets must also have a label on the chin strap, which is a QR code with a hologram (Image 5).

FIM standards pertain to helmets to be used in FIM-sanctioned competition. Only one-piece, full-face helmets are allowed in those events, so no modular or less-coverage style helmets can gain FIM approval. It is conceivable, however, that a few of the FIM-approved helmets could find their way into non-competition consumer use.

Motorcycling is a highly individual sport. From the machine you choose to ride to where, when, and how you ride—it’s all up to you. I encourage you to gear up, ride safe, and enjoy the road, trail, or track. Keep it clicked here for further updates as more data becomes available.

To view the NHTSA helmet test reports that provide results for each helmet tested in detail, follow these instructions:

  • Go to the appropriate NHTSA page.
  • Select “Equipment”
  • Put “FMVSS” in the search box
  • Click “Submit Search”
  • Select “218” in the FMVSS menu
  • Select the desired year
  • Click “Submit Choices”
