2016 Ducati XDiavel S | Buyer’s Guide

2016 Ducati XDiavel S | Buyer's Guide

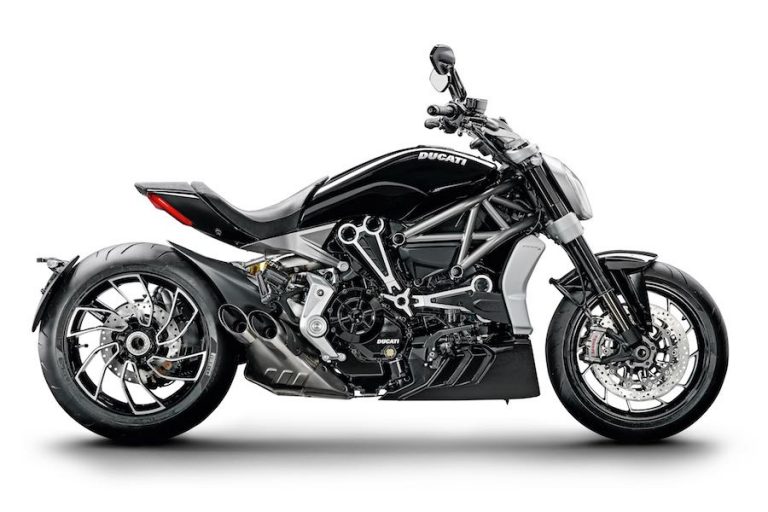

2016 Ducati XDiavel S

2016 Ducati XDiavel S

 2016 Ducati XDiavel S | Buyer's Guide
2016 Ducati XDiavel S

Not only does the new Ducati XDiavel S get all the features of the standard XDiavel, including the new 156 horsepower Testastretta DVT 1262 motor that puts out 95 ft/lbs of torque at 5000 rpm, but it also get daytime running lights, DLC coating for the forks, upgraded Brembo M50 front calipers, a special seat, and machine-finishing on select parts for a premium appearance.

The gloss black paint lets people know that you opted for the high-end XDiavel S. If you’re interested in going fast in the canyons, the Pirelli Diablo Rosso II tires will make sure the XDiavel S stays stuck to the road. Adjustable pegs and your choice of seats and bars gives you the opportunity to fine-tune the XDiavel S ergonomics to your liking.

Read our Ducati XDiavel S Review.

Visit our Motorcycle Buyer’s Guide.

2016 Ducati XDiavel Specs:


  • Type: Liquid-cooled Testastretta DVT 1262 L-twin w/ four desmodromically actuated valves per cylinder
  • Displacement: 1262cc
  • Bore x stroke: 106 x 71.5mm
  • Compression ratio: 13:1
  • Max Power: 156 hp @ 9500 rpm
  • Max Torque: 95 ft/lbs @ 5000 rpm
  • Fuel injection: Bosch EFI, fully ride-by-wire controlled
  • Exhaust: Stainless steel muffler with aluminum tips; catalyzer and 2 lambda probes
  • Transmission: 6-speed w/ straight cut gears
  • Final drive: Belt; 28/80
  • Clutch: Slipper and self-servo wet multiplate clutch with hydraulic control


  • Frame: Tubular steel trellis frame
  • Front suspension: Adjustable inverted 50mm fork; 4.7 inches of travel
  • Rear suspension: Adjustable spring-preload and rebound damping remote-reservoir rear shock w/ progressive linkage, remote spring preload adjustment, and single-sided aluminum swingarm; 4.3 inches of travel
  • Front: Machined cast alloy; 3.50″ x 17″
  • Rear: Machined cast alloy; 8.00″ x 17″
  • Front tire: 120/70 ZR 17 Pirelli Diablo Rosso II
  • Rear tire: 240/45 ZR17 Pirelli Diablo Rosso II
  • Front brakes: Twin 320 mm semi-floating discs, radially attached Brembo Monoblock M50 calipers
  • Rear brake: 265mm disc, 2-piston floating caliper
  • ABS: Standard, w/ Bosch cornering


  • Wheelbase: 63.6 inches
  • Rake: 30 degrees
  • Trail: 5.1 inches
  • Seat height: 29.7 inches
  • Fuel tank capacity: 4.8 gallons
  • Wet weight: 545 pounds

2016 Ducati XDiavel Price:

  • From $22,995

2016 Ducati XDiavel Photo Gallery
