2016 Ducati Diavel Carbon | Buyer’s Guide

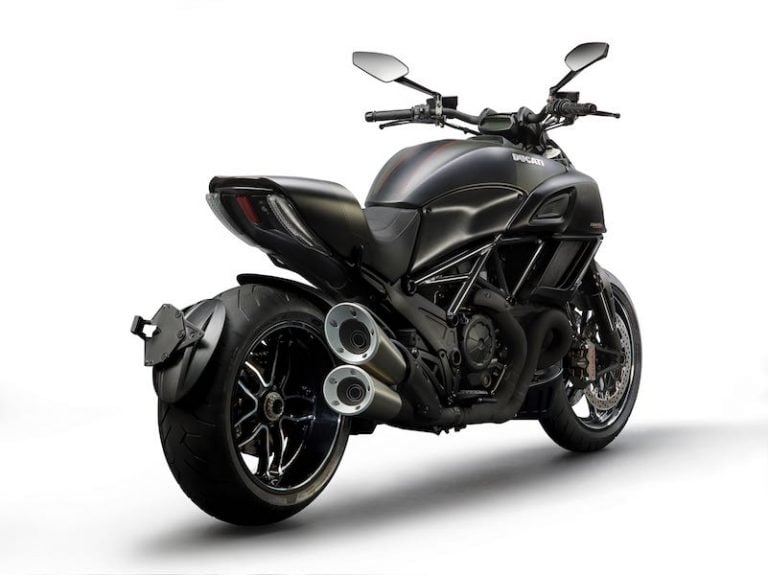

2016 Ducati Diavel Carbon

 2016 Ducati Diavel Carbon | Buyer's Guide
2016 Ducati Diavel Carbon

Take the standard Ducati Diavel and add some functional and visual enhancements, and you have the Diavel Carbon. To make the Diavel Carbon, Ducati added forged, turned, and milled Marchesini wheels and stainless steel silencers, along with carbon fiber for the tank cover, rear seat cover, and front fender.

The result is a bike that is 11 pounds lighter than the standard Diavel, and is still powered by the 162 horsepower Testastretta 11° L-twin that also puts out 96 ft/lbs of torque. Red Carbon and Star White are colors exclusive to the Diavel Carbon, which also has Pirelli Diablo Rosso II tires, Marzocchi forks, and Brembo Monoblock front calipers. The Ducati Safety Pactk(ABS and traction control) is standard.

Visit our Motorcycle Buyer’s Guide.

2016 Ducati Diavel Carbon Specs:

  • Engine: Liquid-cooled Testastretta 11° L-twin w/ four desmodromically actuated valves per cylinder
  • Displacement: 1198cc
  • Bore x stroke: 106 x 67.9mm
  • Compression ratio: 12.5:1
  • Max Power: 162 hp @ 9250 rpm
  • Max Torque: 96 ft/lbs @ 8000 rpm
  • Fuel injection: Elliptical throttle bodies, fully ride-by-wire controlled
  • Exhaust: Stainless steel muffler with aluminum tips; catalyzer and 2 lambda probes
  • Transmission: 6-speed w/ straight cut gears
  • Final drive: Chain drive; 15/43
  • Clutch: Slipper and self-servo wet multiplate clutch with hydraulic control
  • Frame: Tubular steel trellis frame
  • Front suspension: Fully adjustable inverted 50mm Marzocchi fork with DLC-treatment; 4.7 inches of travel
  • Rear suspension: Fully adjustable rear shock w/ progressive linkage, remote spring preload adjustment, and single-sided aluminum swingarm; 4.7 inches of travel
  • Front wheels: Marchesini forged and machined 9-spoke; 3.50″ x 17″
  • Rear wheels: Marchesini forged and machined 9-spoke, 8.00″ x 17″
  • Tires
  • Front: 120/70 ZR 17 Pirelli Diablo Rosso II
  • Rear: 240/45 ZR17 Pirelli Diablo Rosso II
  • Front brakes: Twin 320 mm semi-floating discs, radially attached Brembo Monoblock 4-piston calipers
  • Rear brake: 265mm disc, 2-piston floating caliper
  • ABS: Standard
  • Wheelbase: 62.2 inches
  • Rake: 28 degrees
  • Seat height: 30.3 inches
  • Fuel tank capacity: 4.5 gallons
  • Wet weight: 516 pounds.

2016 Ducati Diavel Cabon Colors:

  • Red Carbon
  • Star White

2016 Ducati Diavel Carbon Price:

  • From $21,895
