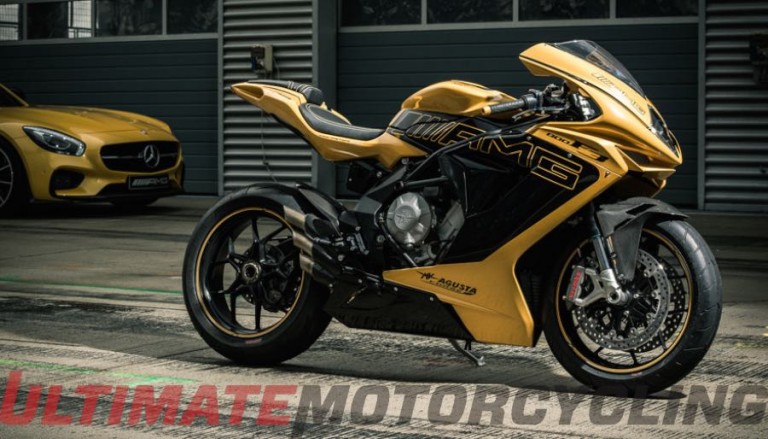

MV Agusta F3 AMG Solar Beam Photos


MV Agusta F3 AMG Solar Beam Specs:
Engine• Type: Three-cylinder, four-stroke, twelve-valve engine
• Timing system: Double overhead camshaft
• Total displacement: 798 cm³
• Compression ratio: 13.3:1
• Starting: Electric
• Bore x stroke: 79 mm x 54.3 mm
• Max. power – rpm at the crankshaft: 108.8 kW (148 hp) at 13,000 rpm
• Max. torque – rpm: 88 Nm (8.97 kgm) at 10,600 rpm
• Cooling with separate water and oil radiators
• Engine management system: Integrated ignition-injection system MVICS (Motor & Vehicle Integrated Control System) with six injectors; Eldor EM2.0 engine control unit; drive-by-wire operated Mikuni throttle body; pencil coil with ion-sensing technology; four maps; traction control with eight levels of intervention
• Electronic quick shift: MV EAS (electronically assisted shift)
• Clutch:
○ Mechanically operated, multi-disc
○ Wet clutch
• Transmission: Six-speed cassette-style gearbox with constant mesh
• Primary drive: 19/36

○ First gear: 13/37
○ Second gear: 16/34
○ Third gear: 18/32
○ Fourth gear: 19/30
○ Fifth gear: 21/30
○ Sixth gear: 22/29
• Final drive ratio: 17/41Electric Equipment
• Voltage: 12 V
• Alternator: 350 W at 5,000 rpm
• Battery: 12 V – 8.6 AhDimensions and Weight
• Wheelbase: 1,380 mm
• Overall length: 2,060 mm
• Overall width: 725 mm
• Saddle height: 805 mm
• Min. ground clearance: 125 mm
• Trail: 99 mm
• Dry weight: 173 kg
• Fuel tank capacity: 16.5 lPerformance
• Max. speed (measured on a closed course): 269.0 km/h (167.1 mph)Frame
• Type: ALS steel tubular trellis
• Rear swing arm pivot plates material: Aluminum alloyFront Suspension
• Type: Marzocchi upside down fork with individually adjustable rebound and compression damping and adjustable spring preload
• Fork diameter: 43 mm
• Fork travel: 125 mmRear Suspension
• Type: Progressive Sachs monoshock with adjustable rebound and compression damping and adjustable spring preload
• Single sided swing arm material: Aluminum alloy
• Fork travel: 123 mmBrakes
• Front brake: Ø 320 mm double floating disc with steel braking disc and flange
• Front brake caliper: Brembo radial-type monobloc with four pistons of Ø 34 mm
• Rear brake: Ø 220 mm single steel disc
• Rear brake caliper: Brembo with two pistons of Ø 34 mm
• ABS system: Bosch 9 Plus with Race Mode and RLM (rear-wheel lift-up mitigation)Wheels
• Front, material/size: Aluminum alloy 3.50” x 17”
• Rear, material/size: Aluminum alloy 5.50” x 17”Tires
• Front: 120/70 – ZR 17 M/C (58 W)
• Rear: 180/55 – ZR 17 M/C (73 W)For additional information, visit MV Agusta.
