2024 Harley-Davidson Hydra-Glide Revival Buyer’s Guide

The 2024 Harley-Davidson Hydra-Glide Revival is the fourth Icons Collection limited edition. It celebrates the 75th anniversary of the Hydra-Glide telescopic fork, which replaced the springer front end on the 1949 FL. Built on the Softail platform and based on the Heritage Classic 114, it is limited to 1750 numbered examples.

2024 Harley-Davidson Hydra-Glide Revival in Redline Red and Birch White, front three-quarter view

Styling sets it apart. Redline Red and Birch White two-tone paint duplicates the 1956 graphics, the Harley-Davidson V tank badges and Hydra-Glide fender badges replicate mid-1950s pieces, and the lower half of the detachable windshield is tinted Redline Red. An Icons Collection graphic is on the rear fender, and a numbered plate is on the handlebar clamp.

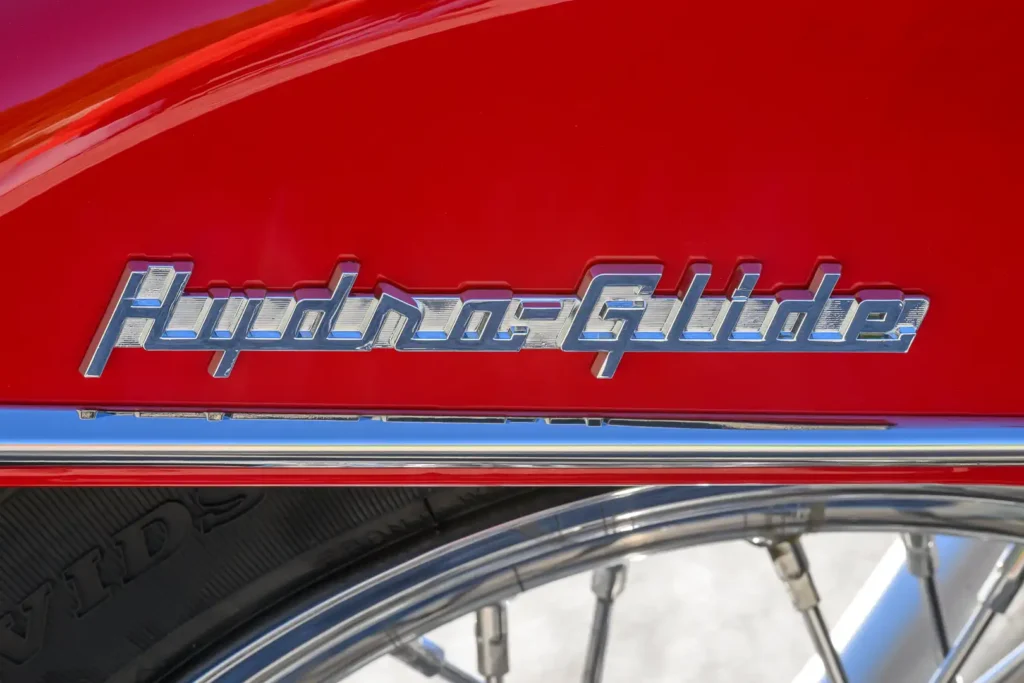

2024 Harley-Davidson Hydra-Glide Revival Hydra-Glide front fender badge

Chrome covers the air cleaner, valve covers, exhaust, fork covers, headlight nacelles, rims, engine guards, seat frame, and handlebar. The solo seat has red stitching and white piping, and black leather fringe, studs, and conchos decorate the seat valance, tank strap, and saddlebags. The tank-mounted speedometer has 1950s-style graphics.

2024 Harley-Davidson Hydra-Glide Revival saddlebag with leather fringe, studs, and conchos

Functionally, the Revival differs from the Heritage Classic mainly in its rear suspension, which has an inch less travel for a lower stance. The Showa Dual Bending Valve fork has 5.1 inches of travel, wire-spoke 16-inch wheels wear Dunlop D401 tires, and the Revival weighs 742 pounds, 14 more than the standard Heritage Classic.

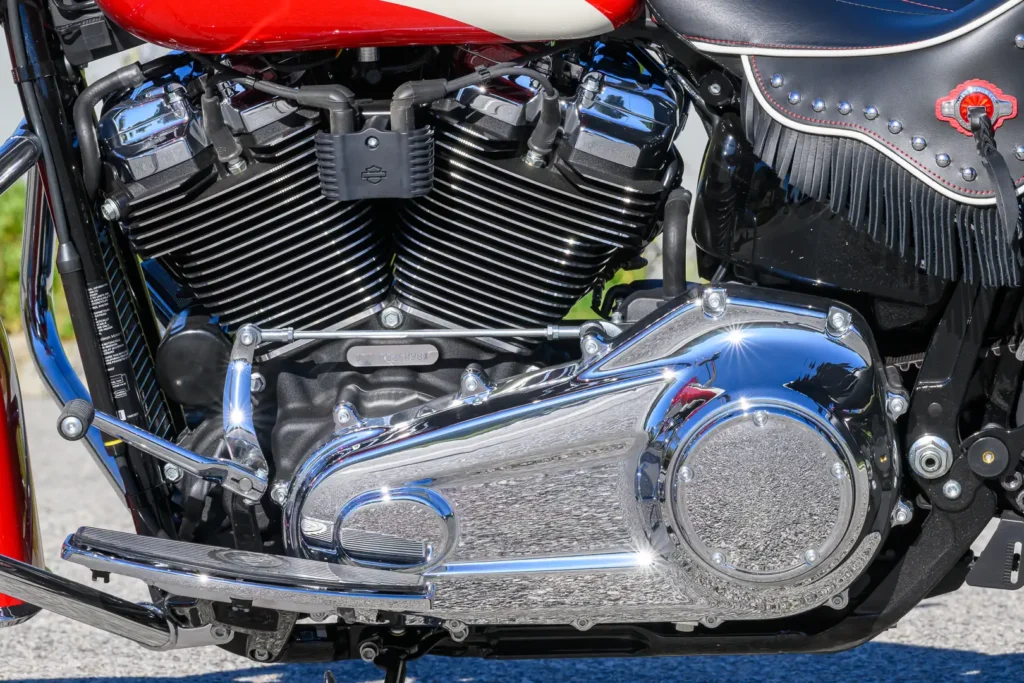

2024 Harley-Davidson Hydra-Glide Revival Milwaukee-Eight 114 V-twin engine

The Milwaukee-Eight 114 V-twin breathes through a Screamin’ Eagle High Flow air cleaner and produces 94 horsepower and 119 ft-lbs of torque at 3000 rpm. Its muscular torque at all revs makes quick work of stoplights, and it sends more vibration to the grips and floorboards than the 117 in Harley’s Grand American Touring models.

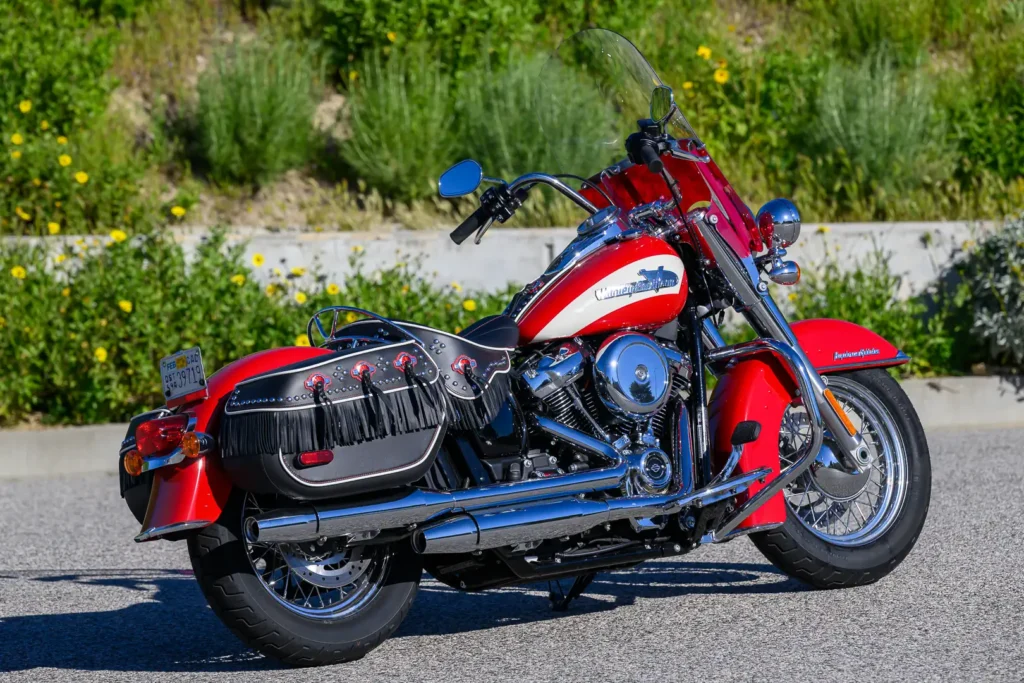

2024 Harley-Davidson Hydra-Glide Revival parked on a hillside road, right side view

Equipment is basic: ABS, cruise control, and triple LED headlights, with a single front disc. The saddlebags lock and are water-resistant, the solo seat is low, the handlebar is tall and wide, and floorboards give the feet plenty of room.

Harley-Davidson lists the 2024 Hydra-Glide Revival at $24,999, $1500 more than the two-tone Heritage Classic 114. It is for riders who want a cruiser that doubles as a light tourer, wrapped in collectible 1950s style.

Read our 2024 Harley-Davidson Hydra-Glide Revival review.

2024 Harley-Davidson Hydra-Glide Revival Specs

ENGINE

  • Type: Milwaukee-Eight 114 V-twin
  • Displacement: 114ci
  • Bore x stroke: 4.016” x 4.5”
  • Maximum power: 94 horsepower @ 4750 rpm
  • Maximum torque: 119 ft-lbs @ 3000 rpm
  • Compression ratio: 10.5:1
  • Valvetrain: Single-cam w/ pushrods; 4 vpc
  • Exhaust: 2-into-2; catalyst in muffler
  • Cooling: Air and oil
  • Lubrication: Dry sump
  • Transmission: 6-speed
  • Clutch: Wet multiplate w/ assist function
  • Primary drive: Chain
  • Final drive: Belt

CHASSIS

  • Frame: Tubular mild steel w/ rectangular section backbone
  • Front suspension; travel: Non-adjustable Showa Dual Bending Valve 49mm fork; 5.1 inches
  • Rear suspension; travel: Spring-preload adjustable shock; 3.4 inches
  • Wheels: Wire-spoked
  • Front and rear wheels: 16 x 3.00
  • Tires: Dunlop Harley-Davidson Series D401
  • Front tire: 130/90-16
  • Rear tire: 150/80-16
  • Front brake: 300mm disc w/ fixed 4-piston caliper
  • Rear brake: 292mm disc w/ floating 2-piston caliper
  • ABS: Standard

DIMENSIONS and CAPACITIES

  • Wheelbase: 64.2 inches
  • Rake: 30 degrees
  • Trail: 5.7 inches
  • Seat height: 26.1 inches
  • Fuel capacity: 5 gallons
  • Estimated fuel consumption: 47 mpg
  • Curb weight: 742 pounds
  • Color/trim: Redline Red/Chrome

2024 Harley-Davidson Hydra-Glide Revival Price: $24,999 MSRP
