2024 Harley-Davidson CVO Road Glide ST Buyer’s Guide

0
2024 Harley-Davidson CVO Road Glide ST Buyer’s Guide

The 2024 Harley-Davidson CVO Road Glide ST is the sportiest bagger from Milwaukee, drawing on the Screamin’ Eagle Harley-Davidson Factory Road Glides that race in MotoAmerica’s King of the Baggers series. It builds on the CVO Road Glide with more power, fully adjustable suspension, bigger brakes, and less weight.

2024 Harley-Davidson CVO Road Glide ST in Raven Metallic, right side profile

It is the only motorcycle with the Milwaukee-Eight 121 High Output V-twin. Variable valve timing gives way to a high-performance cam, a 58mm throttle body, and 26% more intake flow, good for 127 horsepower at 4900 rpm and 145 ft-lbs of torque at 4000 rpm, the highest production figures from the Motor Company. Lower gearing sharpens acceleration, and titanium Screamin’ Eagle mufflers wear carbon-fiber end caps.

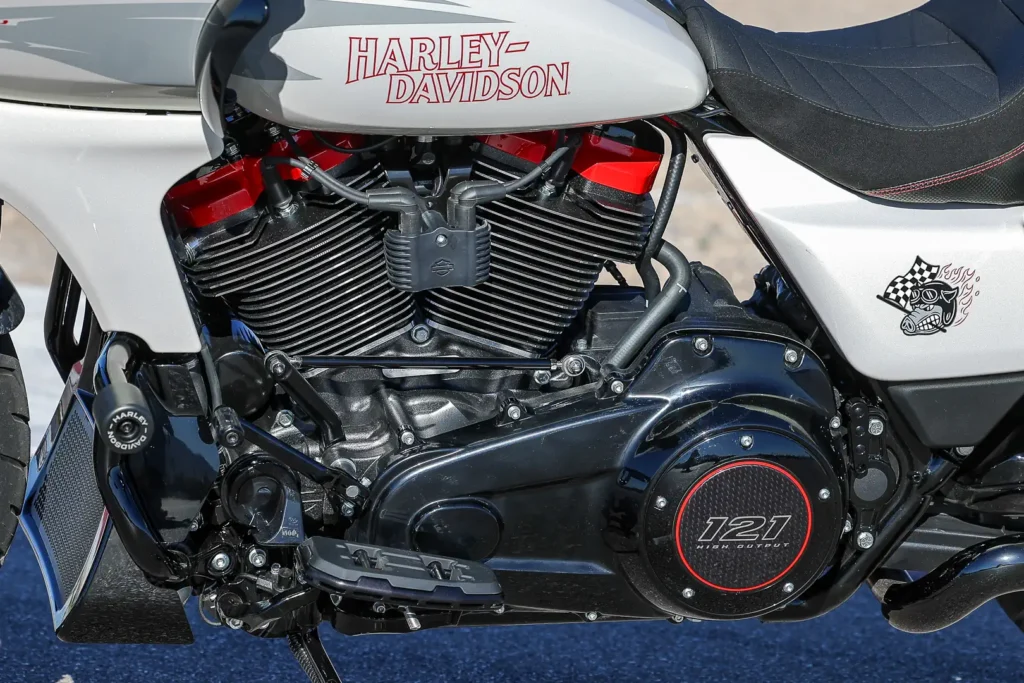

2024 Harley-Davidson CVO Road Glide ST Milwaukee-Eight 121 High Output V-twin engine

Rain, Road, Sport, Track, and Track Plus modes tailor throttle response, engine braking, cornering ABS, and traction control. Track loosens the rider aids and disables rear-to-front linked braking, while Track Plus removes linked braking and keeps intervention to a minimum.

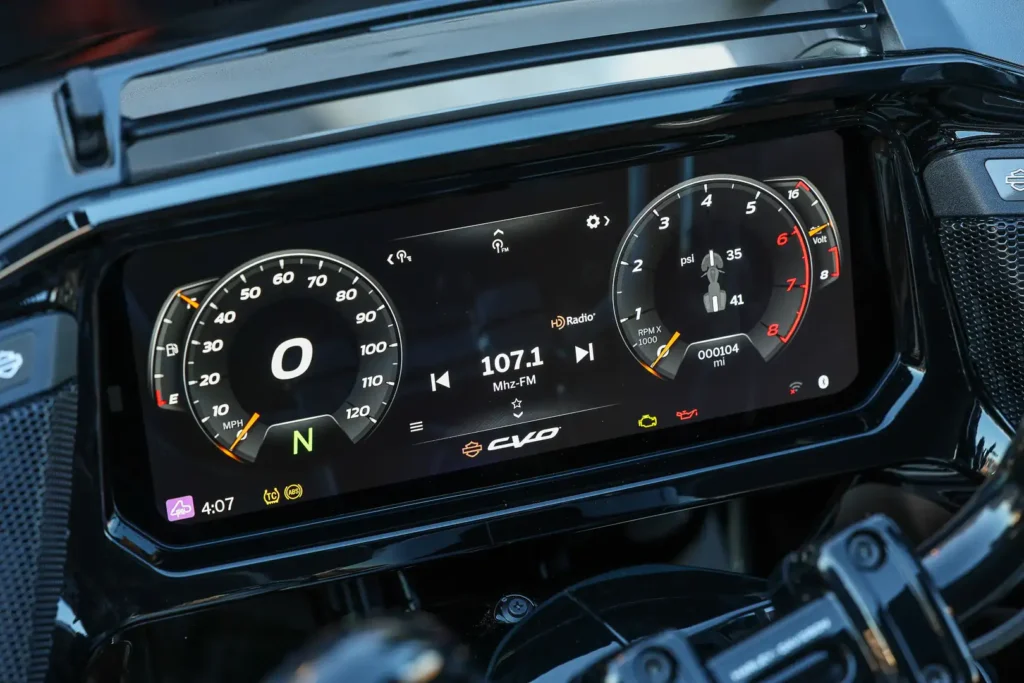

2024 Harley-Davidson CVO Road Glide ST 12.3-inch TFT display

It is the first Grand American Touring model with fully adjustable suspension: a 47mm Showa inverted fork with DLC-coated stanchions and remote-reservoir Showa shocks with three inches of travel. Radially mounted Brembo four-piston calipers grip 320mm wave-style discs. The CVO Road Glide ST corners eagerly, stays tidy at speed, and handles tight U-turns with a little clutch and brake finesse.

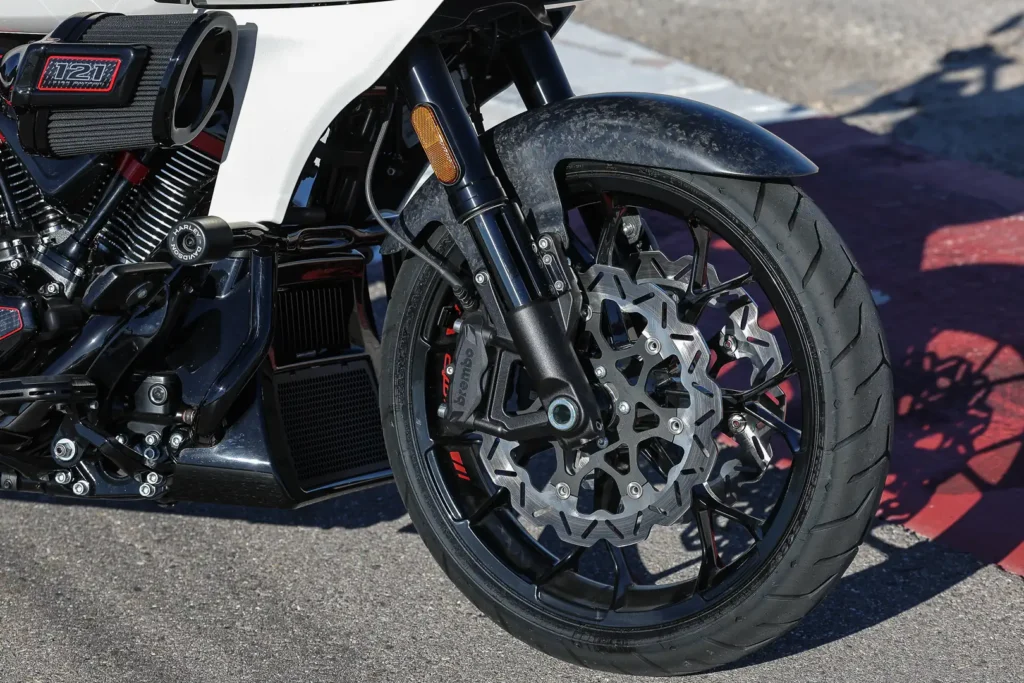

2024 Harley-Davidson CVO Road Glide ST Showa inverted fork and Brembo front brakes

Carbon fiber covers the front fender, tank console, and seat cowl, and lighter wheels, discs, and mufflers trim more weight. It is 25 pounds lighter than the CVO Road Glide, yet still 838 pounds fueled.

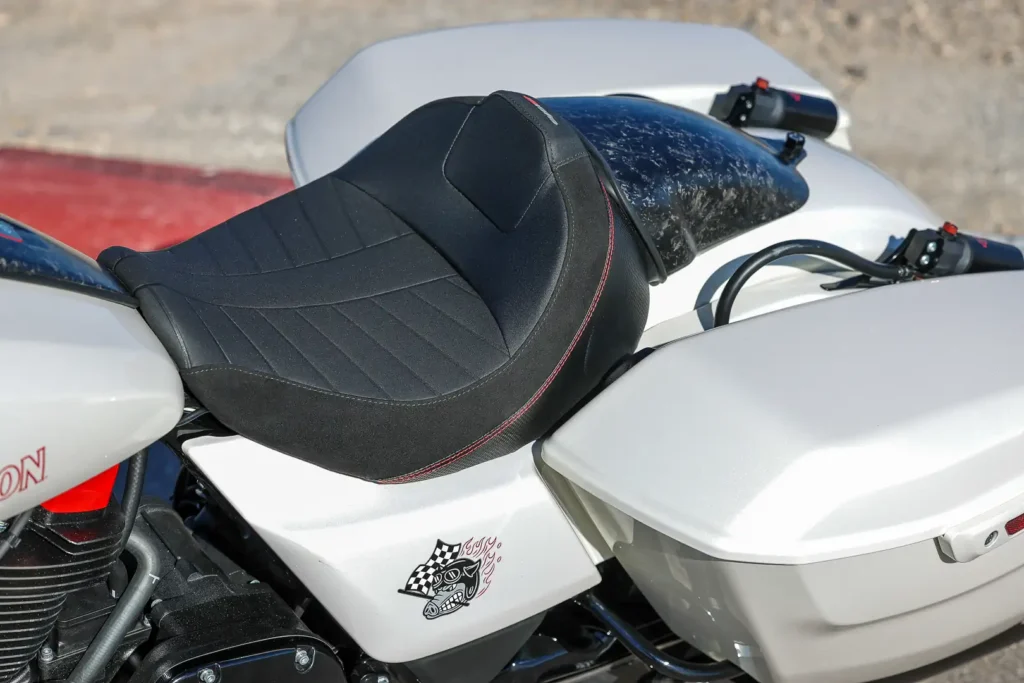

2024 Harley-Davidson CVO Road Glide ST solo seat and carbon-fiber seat cowl

A lower, flatter Moto Bar on six-inch risers and a sculpted solo seat set a sportier posture, with a 28.3-inch seat height. The fairing houses a 12.3-inch TFT touchscreen with Apple CarPlay and built-in navigation, plus a 500-watt Rockford Fosgate audio system.

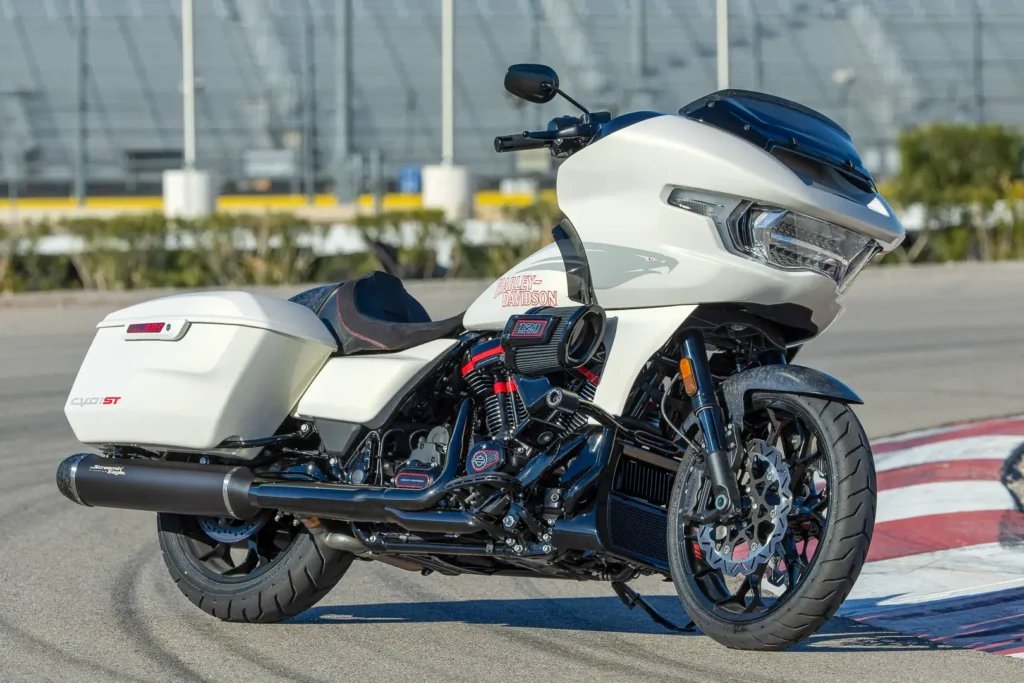

2024 Harley-Davidson CVO Road Glide ST in Golden White Pearl parked at Las Vegas Motor Speedway

The CVO Road Glide ST is for riders who want a direct link to bagger racing in a machine that still tours. Harley-Davidson offers it in Raven Metallic or Golden White Pearl with race-inspired graphics, priced at $42,999.

Read our 2024 Harley-Davidson CVO Road Glide ST review.

2024 Harley-Davidson CVO Road Glide ST Specifications

ENGINE

  • Type: Milwaukee-Eight 121 High Output V-twin
  • Displacement: 121 cubic inches (1977cc)
  • Bore x stroke: 4.075” x 4.625”
  • Maximum power: 127 horsepower @ 4900 rpm
  • Maximum torque: 145 ft-lbs @ 4000 rpm
  • Compression ratio: 11.4:1
  • Valvetrain: Single cam w/ pushrods; 4 vpc
  • Exhaust: 2-1-2 dual exhaust w/ titanium mufflers and carbon-fiber end caps
  • Cooling: Air and oil
  • Lubrication: Dry sump
  • Transmission: 6-speed Cruise Drive
  • Clutch: Hydraulically actuated w/ assist and slipper functions
  • Primary drive: Chain
  • Final drive: Belt

CHASSIS

  • Frame: Mild tubular steel w/ two-piece stamped and welded backbone
  • Subframe: Bolted on w/ forged fender supports
  • Front suspension; travel: Fully adjustable Showa 1×1 inverted 47mm fork; 4.6 inches
  • Rear suspension; travel: Fully adjustable Showa remote-reservoir emulsion shocks; 3 inches
  • Wheels: 7-spoke cast aluminum
  • Front wheel: 19 x 3.5
  • Rear wheel: 18 x 5
  • Front tire: 130/60 x 19; Dunlop Harley-Davidson Series D408F
  • Rear tire: 180/55 x 18; Dunlop Harley-Davidson Series D407T
  • Front brakes: 320mm wave-style discs w/ radially mounted Brembo 4-piston calipers
  • Rear brake: 300mm disc w/ Brembo 4-piston caliper
  • ABS: Standard

DIMENSIONS and CAPACITIES

  • Wheelbase: 64 inches
  • Seat height: 28.3 inches
  • Rake: 26 degrees
  • Fork angle: 30 degrees
  • Trail: 6.7 inches
  • Fuel capacity: 6 gallons
  • Estimated fuel consumption: 44 mpg
  • Curb weight: 838 pounds
  • Colors: Raven Metallic; Golden White Pearl

2024 Harley-Davidson CVO Road Glide ST Price: $42,999 MSRP
