2024 BMW R 1300 GS Buyer’s Guide [Specs, Price]

0
2024 BMW R 1300 GS Buyer’s Guide [Specs, Price]

The 2024 BMW R 1300 GS is a ground-up redesign of the flagship adventure bike, built around a new boxer twin in a slimmer, lighter package. It is designed to tour in comfort, carve mountain roads, and keep going when the pavement ends.

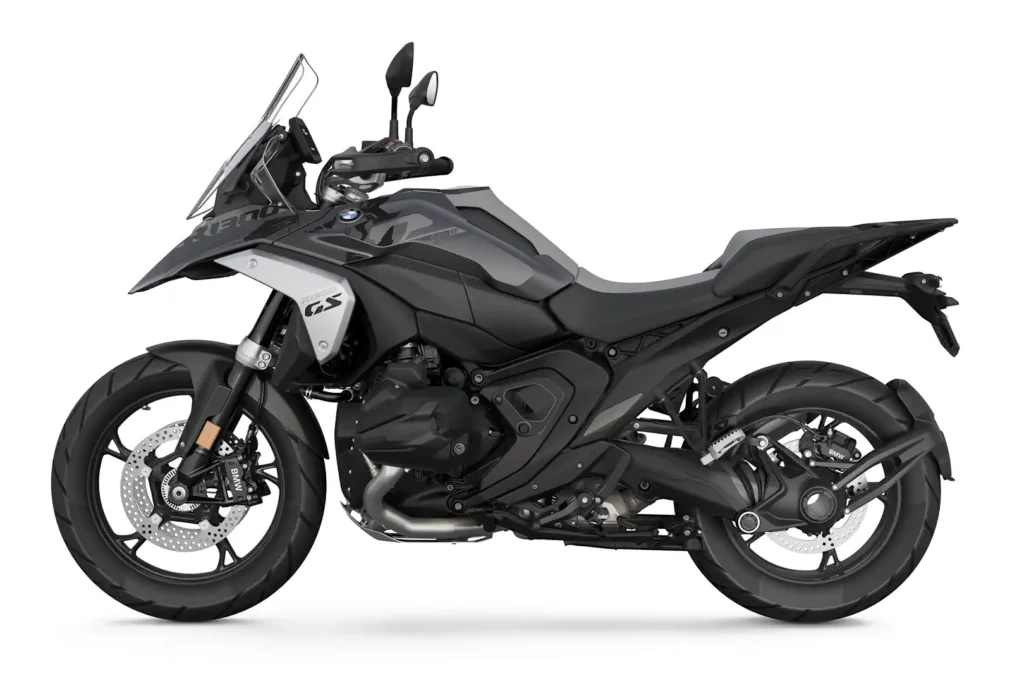

2024 BMW R 1300 GS in black, side view on a white background

The 1300cc horizontally opposed twin is more oversquare than the 1254cc engine it replaces, with a 13.3:1 compression ratio and ShiftCam variable valve timing. Peak output climbs to 145 horsepower, and the powerband is broad, with strong pull from the midrange to the 9000 rpm redline. Cooling is a mix of liquid and air, and final drive is by shaft.

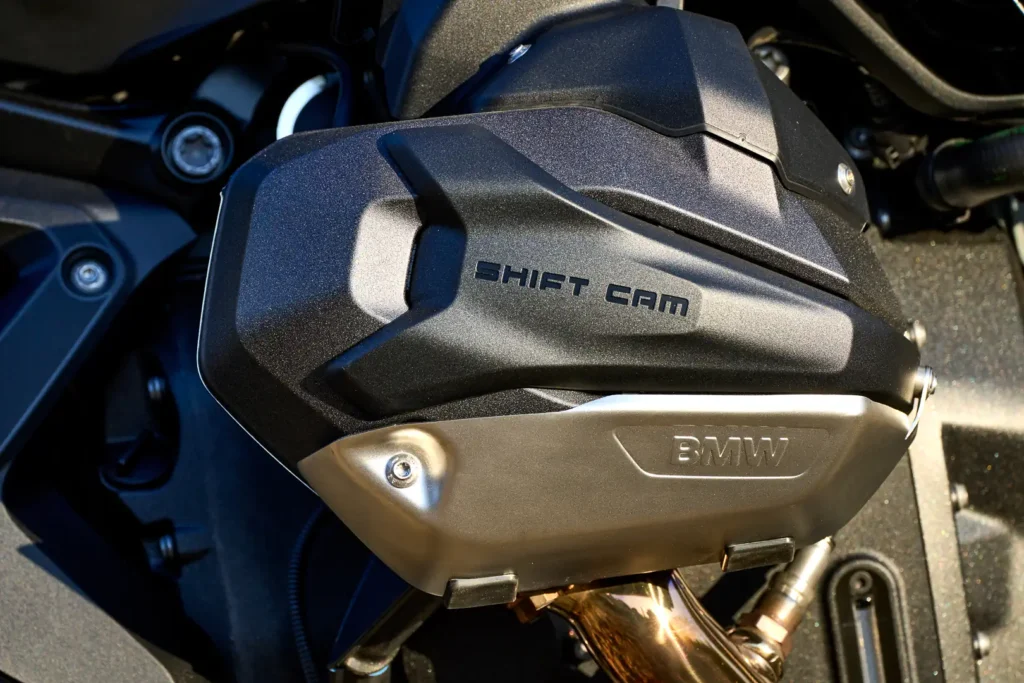

2024 BMW R 1300 GS boxer twin cylinder close-up

BMW moved the 6-speed transmission beneath the engine rather than behind it. That shortens the engine, makes room for a longer swingarm, and helps cut 26 pounds from the GS, which has a 523-pound curb weight. The wet multiplate clutch has a slipper function and hydraulic actuation, and a quickshifter is optional.

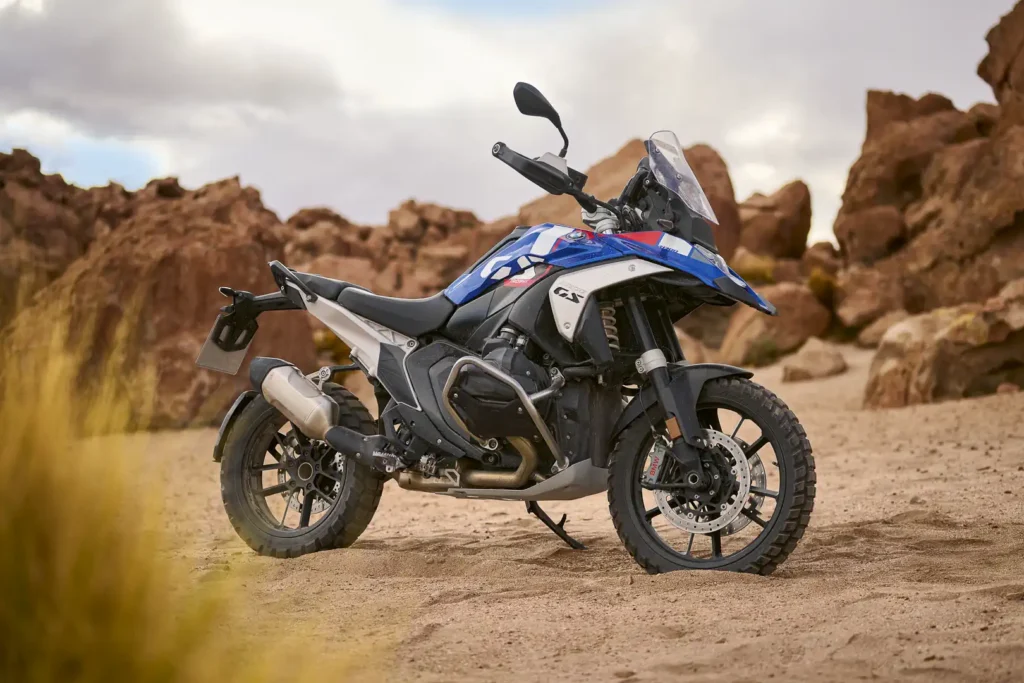

2024 BMW R 1300 GS parked on a desert road with red rock formations

The chassis is new, too. A steel sheet-metal main frame uses the engine as a stressed member, and the bolt-on cast-aluminum subframe can be replaced if damaged. The redesigned Evo Telelever front end eliminates the flex of earlier versions for more precise steering and clearer front-end feedback, while the Evo Paralever swingarm is longer and stiffer. Fully linked brakes use 310mm front discs with radially mounted 4-piston calipers.

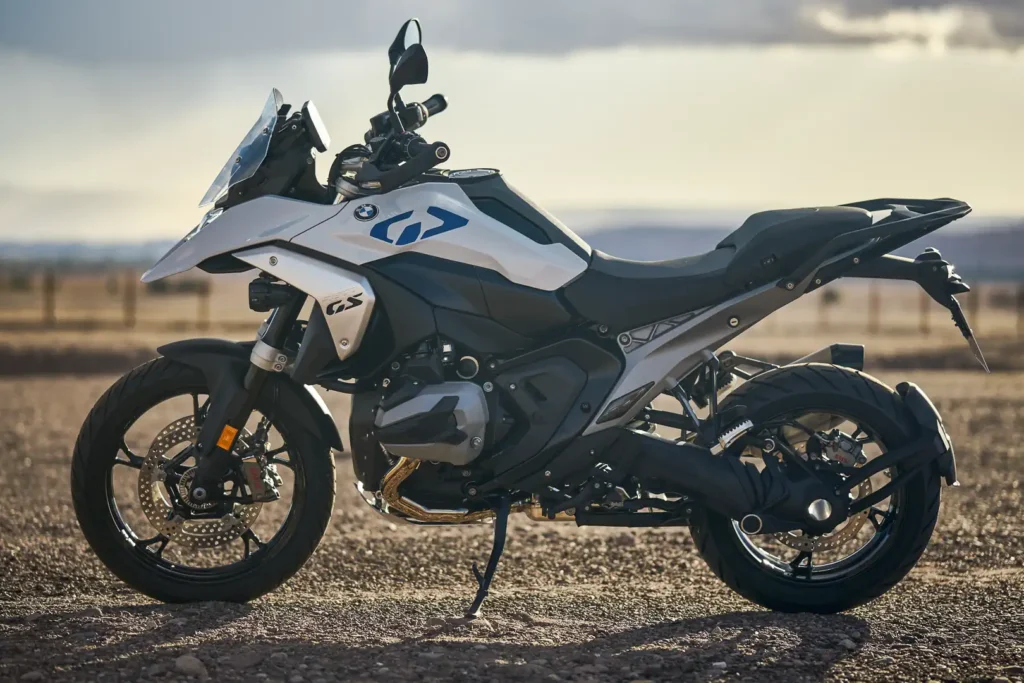

2024 BMW R 1300 GS parked on a dirt plain at dusk

Standard equipment includes Road, Rain, Eco, and Enduro ride modes, a 6.5-inch TFT display, heated grips, keyless ride, tire pressure monitoring, hill-hold control, a Matrix LED headlight, and Metzeler Karoo 4 tires. Options include three more ride modes, semi-active suspension, adaptive ride height that lowers the seat 1.2 inches at low speeds, and radar-based Active Cruise Control.

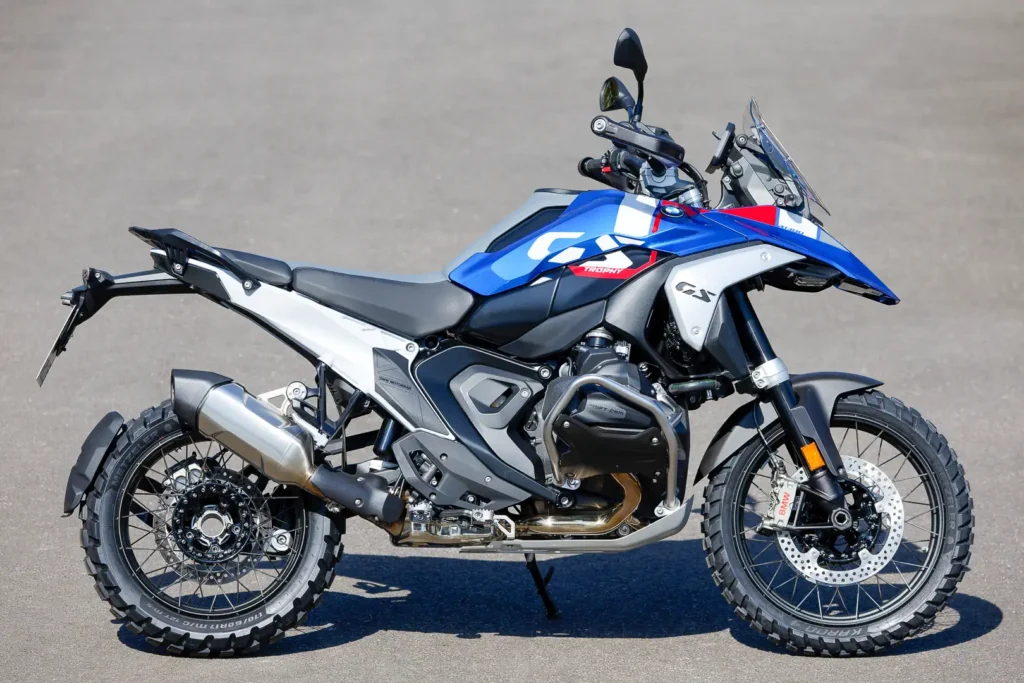

2024 BMW R 1300 GS Trophy in blue and white with wire-spoke wheels, parked

Beyond the base model, the R 1300 GS comes in Triple Black, GS Trophy, and Option 719 Tramuntana variants, each with its own finishes, seats, and equipment. Premium, Comfort, and Enduro Pro packages bundle popular options, and seven seat combinations allow seat heights from 31.5 to 35 inches.

Read our 2024 BMW R 1300 GS review.

2024 BMW R 1300 GS Specs

ENGINE

Type: Horizontally opposed twin

Displacement: 1300cc

Bore x stroke: 106.5 x 73mm

Maximum power: 145 horsepower @ 7750 rpm

Maximum torque: 105 ft-lbs @ 6500 rpm

Compression ratio: 13.3:1

Fueling: EFI w/ 52mm throttle body

Valvetrain: DOHC w/ dual profile cams; 4vpc

Cooling: Liquid and air

Transmission: Constant-mesh 6-speed w/ optional quickshifter

Clutch: Hydraulically actuated wet multiplate w/ slipper function

Final drive: Shaft

CHASSIS

Frame: Two-section steel sheet metal w/ bolt-on subframe

Front suspension; travel: BMW Evo Telelever 37mm fork w/ central spring strut; 7.5 inches

Rear suspension; travel: BMW Evo Paralever and WAD strut w/ shock; 7.9 inches

Wheels: Cast aluminum (wire-spoke and forged aluminum optional)

Front wheel: 19 x 3.00

Rear wheel: 17 x 4.50

Tires: Metzeler Karoo 4

Front tire: 120/70 x 19

Rear tire: 170/60 x 17

Front brakes: 310mm discs w/ radially mounted 4-piston calipers

Rear brake: 285mm disc w/ dual-piston floating caliper

ABS: BMW Motorrad ABS Pro

DIMENSIONS

Wheelbase: 59.8 inches

Rake: 27.2 degrees

Trail: 4.4 inches

Seat height: 33.5 inches

Fuel capacity: 5.0 gallons

Curb weight: 523 pounds

2024 BMW R 1300 GS Price: $18,895 MSRP
