Triumph Tiger Explorer “How To” Clinics

Triumph Tiger Explorer ‘How To’ Clinics & ADV-Themed Events at Dealers

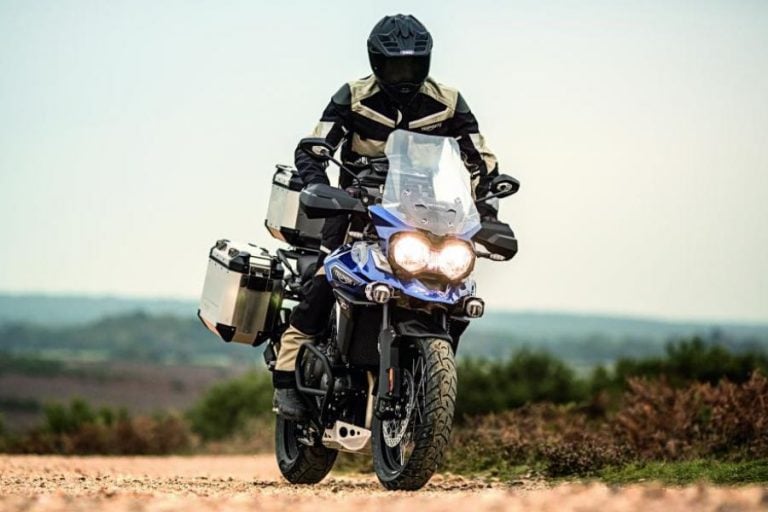

Triumph Tiger Explore XCa

For 2016, Triumph has released five Tiger Explorer models, the lineup divided into two model variants – the XR series for optimal on-road riding (base XR, XRx, XRt), and the XC series, optimal for off-road riding (XCx, XCa).

To celebrate this new lineup, Triumph Dealers of North America are hosting “How To” clinics and ADV-themed events the weekend of June 18-19.

The events will feature everything from ADV riding tips to packing strategies to roadside repair to technical demonstrations of the new Triumph Tiger Explorer. For additional information, visit Triumph Motorcycles.

Visit our 2016 Triumph Tiger Explorer Lineup Preview

About the 2016 Triumph Tiger Explorer

Advertisement

All five models arrive with arrive with Triumph’s 1215cc inline-three cylinder engine and shaft drive. The triple engine’s power is delivered smoothly and progressively across the rev range through its linear torque curve, and the clutch pull is light/

The Tiger Explorer uses WP suspension, manual adjustable on the entry-level XR, and on the mid- to high-spec models the suspension is paired with new Triumph Semi Active Suspension (TSAS) system. TSAS allows the rider to electronically control the adjustment of the front and rear suspension damping, automatically adapting the rear shock absorber preload settings to reflect the terrain being covered and providing optimal grip and drive in any situation, Triumph reports.

ABS, Traction control are standard on the entry-level XR; the other four model variants all feature an Inertial Measurement Unit that uses strategically positioned sensors to monitor and respond to the bike’s movement, calculates lean angle and uses these measurements to optimize the performance of the ABS and Traction Control Systems.

Each bike arrives with five rider modes – four preset and one customizable – for optimal riding in any style, from off-road in the rain to long highway stretches.

Comfort is enhanced by an electronically controlled wind screen, and the top-spec XRT and XCA models arrive with Hill Hold Control, which prevents the motorcycle from rolling back when attempting to set off on a steep incline – particularly beneficial when the motorcycle is fully-loaded or carrying a passenger.

Finally, there is also a low-seat-height version of both the Explorer XRx and XCx available to accommodate an even wider range of riders.

Speaking of the new Triumph Tiger Explorers, Triumph says the range combines distinctive British character, premium componentry and a host of advanced, rider-focused technology to achieve an unprecedented level of adventure and touring capability. With its choice of specifications and switchable, selectable and programmable features, the Tiger Explorer range allows riders to tailor their desired adventure, to go anywhere and everywhere from the daily commute to the far corners of the earth.

2016 Triumph Tiger Explorer Model Lineup Specs:

  Tiger Explorer XR Tiger Explorer XRx Tiger Explorer XRt Tiger Explorer XCx Tiger Explorer XCa
PRICE



$15,900 $17,700 $19,500 $18,400 $20,400
POWER 137 hp @ 9,300rpm 137 hp @ 9,300rpm 137 hp @ 9,300rpm 137 hp @ 9,300rpm 137 hp @ 9,300rpm
TORQUE 90.7 ft.-lbs. @ 6,200rpm 90.7 ft.-lbs. @ 6,200rpm 90.7 ft.-lbs. @ 6,200rpm 90.7 ft.-lbs. @ 6,200rpm 90.7 ft.-lbs. @ 6,200rpm
ENGINE TYPE Liquid-cooled, in-line, 3 cylinder Liquid-cooled, in-line, 3 cylinder Liquid-cooled, in-line, 3 cylinder Liquid-cooled, in-line, 3 cylinder Liquid-cooled, in-line, 3 cylinder
ENGINE SIZE 1215cc 1215cc 1215cc 1215cc 1215cc
SEAT HEIGHT 32.9/33.7 in 32.9/33.7 in

(30.9/31.7 in low seat version)

32.9/33.7 in 32.9/33.7 in (30.9/31.7 in low seat version) 32.9/33.7 in
FRONT SUSPENSION 48mm, WP USD fork, adjustable rebound and compression damping 48mm, WP USD fork, electrically adjustable in rebound and compression damping 48mm, WP USD fork, electrically adjustable in rebound and compression damping 48mm, WP USD fork, electrically adjustable in rebound and compression damping 48mm, WP USD fork, electrically adjustable in rebound and compression damping
REAR SUSPENSION WP monoshock, adjustable in pre-load and rebound damping. Cast aluminium single sided swingarm Semi-active WP monoshock with automatic preload adjustment.

Cast aluminium single sided swingarm

Semi-active WP monoshock with automatic preload adjustment.

Cast aluminium single sided swingarm

Semi-active WP monoshock with automatic preload adjustment.

Cast aluminium single sided swingarm

Semi-active WP monoshock with automatic preload adjustment.

Cast aluminium single sided swingarm

FRONT BRAKES Dual 305mm discs, Brembo Monobloc 4-piston radial calipers Dual 305mm discs, Brembo Monobloc 4-piston radial calipers Dual 305mm discs, Brembo Monobloc 4-piston radial calipers Dual 305mm discs, Brembo Monobloc 4-piston radial calipers Dual 305mm discs, Brembo Monobloc 4-piston radial calipers
REAR BRAKES Single 282mm disc, Nissin 2-piston sliding caliper Single 282mm disc, Nissin 2-piston sliding caliper Single 282mm disc, Nissin 2-piston sliding caliper Single 282mm disc, Nissin 2-piston sliding caliper Single 282mm disc, Nissin 2-piston sliding caliper
TANK CAPACITY 5.2 gal 5.2 gal 5.2 gal 5.2 gal 5.2 gal
DRY WEIGHT 538 lbs. 542 lbs. (538 lbs. Low seat version) 560 lbs. 557 lbs. (553 lbs. Low seat version) 568 lbs.
COLORS Crystal White



Phantom Black

Crystal White



Lucerne Blue

Crystal White



Lucerne Blue



Cranberry Red

Crystal White

Lucerne Blue

Crystal White



Lucerne Blue



Matt Khaki Green

STANDARD EQUIPMENT ·  ABS and Traction Control

·  ‘Road’ and ‘Rain’ Riding Modes

·  Electrically adjustable screen

·  Center stand*

·  Immobilizer

·  12V power socket

·  USB power socket

·  On-board computer

·  Cast wheels

Additional to the XR:

·   Cornering optimized ABS and Traction Control

·   ‘Off-road’ Riding Mode

·   Cruise Control

·   Inertial Measurement Unit

·   Triumph Semi Active Suspension

·   Self-cancelling LED Indicators*

·   Hand guards

·   Additional 12v power socket

·   Heated grips

·   Advanced on-board computer

Additional to XRX:

· ‘Sport’ and ‘Rider’ adjustable Riding Modes

· Hill Hold control

· Electrically adjustable Touring screen

· Tyre Pressure Monitoring System

· Pannier rails for aluminum panniers

· Heated rider and passenger seat

· Engine protection bars

Additional to the XR:

·   Cornering optimized ABS and Traction Control

·   ‘Off-road’ Riding Modes

·   Cruise Control

·   Inertial Measurement Unit

·   Triumph Semi Active Suspension

·   Self-cancelling LED Indicators*

·   Hand guards

·   Additional 12v power socket

·   Heated grips

·   Advanced on-board computer

·   Aluminum sump guard

·   Stainless radiator guard

·   Engine protection bars



Additional to XCX:

· ‘Sport’ and ‘Rider’ adjustable Riding Modes

· Hill Hold control

· Electrically adjustable Touring screen

· Tyre Pressure Monitoring System

· Pannier rails for aluminum panniers

· Heated rider and passenger seat

· Engine protection bars

· CNC machined footrests

· LED auxiliary fog lights

* Low versions of Tiger Explorer XRX and Tiger Explorer XCX do not have the center stand
