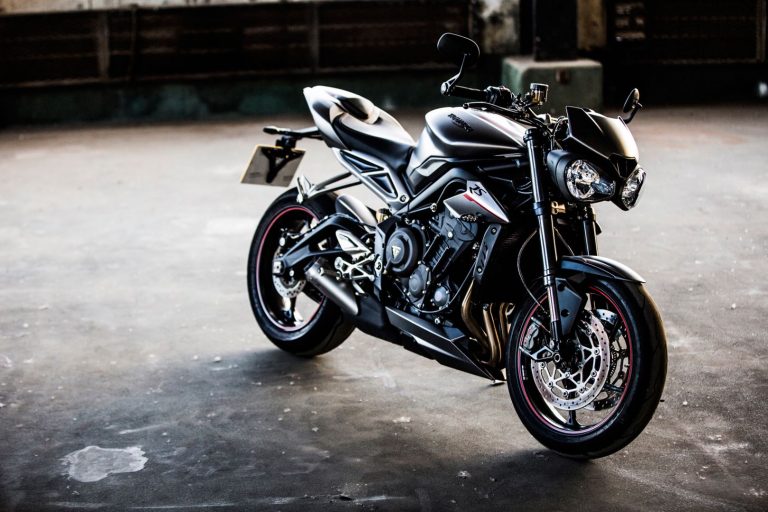

2017 Triumph Street Triple S, R & RS Fast Facts
When Triumph launched its Street Triple in late 2007, the naked out of Hinckley mirrored its older brother, the Speed Triple 1050. The Street Triple arrived with the 675cc inline-three transplanted from the Daytona 675 supersport, but the powerplant was retuned for better street manners.
The Street Triple was the perfect answer for those seeking a mid-weight streetfighter hooligan, and the motorcycle morphed throughout the years, the most significant styling upgrade arriving in 2012 when Triumph switched the bumble-bee circular headlights to angular ones.
Throughout those years, the same 675cc inline-three remained, and the bike was offered after 2009 as a base or R model, which included updated brakes and adjustable Kayaba suspension.
[Visit 2017 Motorcycle Previews]
Except for the Rx released in 2015 with a quickshifter, new seat and wheels, the Street Triple lineup has remained relatively stagnant. But this changes for 2017 with the introduction of a totally revised Street Triple that is powered by the all-new 765cc inline-three engine that features over 80 new parts.
The 2017 Triumph Street Triple will be available in three versions: S, R, and RS. Each model is tweaked for its intended use, from urban traveling (S), to sport (R), to all-out track machine (RS). Each version has a different engine tune for varying horsepower; the S makes 111 horsepower, the R 116, and the RS 121.
All three motors feature a lighter, freer flowing exhaust, revised air box, revised gearbox (shorter 1st and 2nd gear ratios), and new slipper clutch.
The 2017 Triumph Street Triple motorcycles are about 4.5 lbs lighter than the outgoing 2016 model, and arrive with more aggressive styling, including the Speed Triple’s “nose-down” attitude; ride-by-wire throttle with up to five riding modes on the RS; a gullwing rear swingarm; higher-spec suspension and brakes; and 5” TFT instrument panels.
Following are the Fast Facts of each 2017 Triumph Street Triple model.
2017 Triumph Street Triple S:
- 6.6% more horsepower over previous edition (107 claimed): 111 horsepower @ 11,250 rpm
- Two Riding Modes: Road and Rain
- 5” TFT Instrument panel: Speedometer, RPM, riding mode symbol, gear position, fuel gauge, odometer, trip meter
- Revised switch cubes to navigate instruments from Speed Triple
- Traction Control built into Riding Modes (not switchable to off)
- Suspension: Non-adjustable Showa 41mm fork with preload-adjustably monoshock out back
- Brakes: Nissin 2-piston calipers up front; single-piston Brembo out back
- Tires: Pirelli Diablo Rosso Corsa
- Optional Quickshifter
2017 Triumph Street Triple R:
- 11.3% more horsepower over previous edition: 116 horsepower @ 12,000 rpm
- Full-Color 5” adjustable TFT instrument panel: Speedometer, RPM, riding mode symbol, gear position, fuel gauge, odometer, two trip meters, average and current fuel consumption, range to empty, service info, coolant temp, warning symbol information, display style settings
- Also available as R LRH (Lower Seat Height), which has lower seat and suspension settings
- Four Riding Modes: Road, Rain, Sport, and Rider Programmable
- Five-way joystick control to navigate instrument settings
- Switchable ABS: road, track or off
- Traction Control: Road, Rain, Track, Sport or Off
- Suspension: fully adjustable 41mm Showa fork; fully adjustable Showa piggyback reservoir monoshock
- Brakes: Brembo M4.32 four-piston radial monoblock calipers up front; Brembo single-piston sliding caliper out back
- Tires: Pirelli Diablo Rosso Corsa
- Optional Quickshifter
2017 Triumph Street Triple RS:
- 16% more horsepower over previous edition: 121 horsepower @ 11,700 rpm
- Full-Color 5” adjustable TFT instrument panel: Speedometer, RPM, riding mode symbol, gear position, fuel gauge, odometer, two trip meters, average and current fuel consumption, range to empty, service info, coolant temp, warning symbol information, display style settings, lap timer
- Quickshifter: clutchless upshifts that Triumph claims are 2.5 times faster than a skilled rider
- Five Riding Modes: Road, Rain, Sport, Ride Programmable and Track
- Five-way joystick control to navigate instrument settings
- Switchable ABS: road, track or off
- Traction Control: Road, Rain, Track, Sport or Off
- Suspension: fully adjustable 41mm Showa fork; Ohlins STX40 piggyback reservoir monoshock
- Brakes: Brembo M50 four-piston radial monoblock calipers up front; Brembo single-piston sliding caliper out back
- Tires: Pirelli Diablo Supercorsa SP
2017 Street Triple Colors:
- Street Triple S: Diablo Red or Phantom Black (Metallic)
- Street Triple R: Jet Black (Gloss), Matt Aluminum Silver or Crystal White
- Street Triple RS: Matt Silver Ice or Phantom Black (Metallic)
2017 Triumph Street Triple Price:
- Triumph says the Street Triple family will start off at $9,900 for the S, but didn’t release pricing for the R and RS.
2017 Triumph Street Triple Specs:
| Street Triple S | Street Triple R | Street Triple RS | |
| Engine Type | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder | ||
| Capacity | 765cc | ||
| Bore x Stroke | 77.99mm x 53.38mm | ||
| Compression | 12.65:1 | ||
| Max Power | 111 hp at 11250rpm | 116 hp at 12000rpm | 121.3 hp at 11700rpm |
| Max Torque EC | 53.8 lb-ft. at 9100rpm | 56.8 lb-ft. at 9400rpm | 56.7 lb-ft. at 10800rpm |
| System | Multipoint sequential electronic fuel injection with SAI. Electronic throttle control | ||
| Exhaust | Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer | ||
| Final drive | O ring chain | ||
| Clutch | Wet, multi-plate | Wet, multi-plate, slip-assisted | |
| Gearbox | 6-speed | ||
| Frame | Front – aluminum beam twin spar. Rear – 2 piece high pressure die cast | ||
| Swingarm | Twin-sided, cast aluminum alloy | ||
| Front Wheels | Cast aluminum alloy 5-spoke 17 x 3.5in | ||
| Rear Wheels | Cast aluminum alloy 5-spoke 17 x 5.5in | ||
| Front Tires | 120/70ZR17 | ||
| Rear Tires | 180/55ZR17 | ||
| Front Suspension | Showa 41mm upside down separate function forks (SFF), 110mm front wheel travel | Showa 41mm upside down separate function big piston forks (SF-BPF), 115mm front wheel travel. Adjustable compression damping, rebound damping and adjustable preload | Showa 41mm upside down big piston forks (BPF), 115mm front wheel travel. Adjustable compression damping, rebound damping and adjustable preload |
| Rear Suspension | Showa piggyback reservoir monoshock, 124mm rear wheel travel. Adjustable preload. | Showa piggyback reservoir monoshock, 134mm rear wheel travel. Adjustable spring preload (lock-rings), compression damping and rebound damping. | Öhlins STX40 piggyback reservoir monoshock, 131mm rear wheel travel. Adjustable spring preload (lock-rings), compression damping and rebound damping |
| Front Brakes | Twin 310mm floating discs, Nissin 2-piston sliding calipers | Twin 310mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, switchable ABS | Twin 310mm floating discs, Brembo M50 4-piston radial monobloc calipers, switchable ABS |
| Rear Brakes | Single 220mm fixed disc, Brembo single piston sliding caliper | Single 220mm fixed disc, Brembo single piston sliding caliper, switchable ABS | |
| Instrument Display and Functions | LCD instrument pack with analogue tacho | Full-colour, 5″ TFT instrument pack with 3x styles and high/low contrast options | Full-colour, 5″ TFT instrument pack with 2x Themes, 3x styles and high/low contrast options |
| Width | 28.9 inches at handlebars | ||
| Height | 42 inches (excluding mirrors) | 43 inches (excluding mirrors) | |
| Seat Height | 31 inches | 32 inches | |
| Wheelbase | 56 inches | ||
| Rake | 24.8º | 23.9º | |
| Trail | 4.1 inches | 3.9 inches | |
| Dry Weight | 366 pounds (claimed) | ||
| Tank Capacity | 4.6 gallons | ||
| Fuel Consumption | 50 mpg (claimed) | 49 mpg (claimed) | 50 mpg (claimed) |
| Colors | Phantom Black Diablo Red | Jet Black Crystal White Matt Aluminum Silver | Phantom Black Matt Silver Ice |
