Denali D3 Light Pods Review: Legal Motorcycle LED High-Beams

0
Denali D3 Light Pods Review: Legal Motorcycle LED High-Beams

Denali Electronics started life 14 years ago in Rhode Island as a powersports lighting company. It was the first in the industry to embrace LED technology over HID and halogen. I have been using LED auxiliary driving lights for about 16 years to pierce the darkness on long nighttime rides. However, this is the very first time that my driving lights have been certified street legal. The Denali D3 Light Pods ($410/pair) are now SAE/DOT and ECE compliant as high beams when fitted with the included clear hybrid lenses.

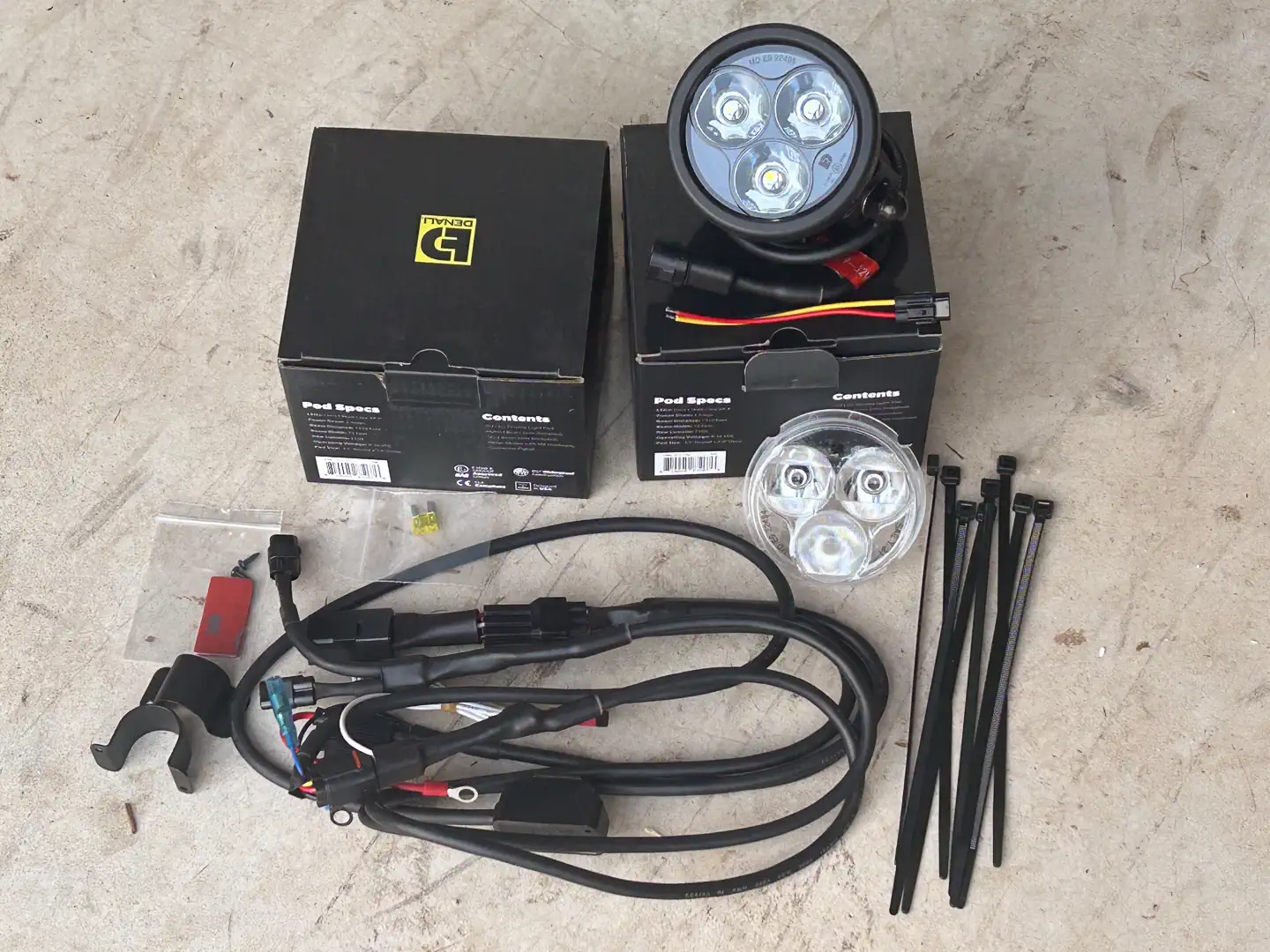

Denali D3 Light Pods Review: Unboxing

Each 36-watt Cree LED-powered light pod provides more than 1000 feet and approximately 10 seconds of see-to-stop time at freeway speeds. Denali engineered the D3 Light Pods to maximize usable light from such a compact package.

Each 3.5-inch-diameter pod pushes out roughly 2,100 lumens through an integrated proprietary TriOptic lens system, using the D3 Light Pods as they come, or with the provided DOT hybrid lens. So, you have the flexibility to run a full spot beam for maximum distance or a full hybrid DOT-legal driving beam.

Even though they are LEDs, the Denali D3 Light Pods have a heavy draw on the Ultimate Motorcycling Honda CRF300L Rally electrical system, so I keep a watchful eye on the voltmeter plugged into the SRC Moto Dash Panel power outlet.

Denali D3 Light Pods Review: Street Legal

Unfortunately, I cannot run motorcycle-powered heated gear and 72 watts of auxiliary lighting on the Rally simultaneously. So, I have switched to a Klim battery-powered heated shirt and gloves combo as the necessary trade-off of safety over convenience and comfort.

Near my home, I have access to a stretch of road with no streetlights or nearby homes—ideal for controlled beam-testing. I measured out 1,000 feet, with trees and a reflective stop sign marking the end of the road. For visual distance testing, I drape a black towel over the stock headlight so anything visible is illuminated solely by the D3 Light Pods. From 1,000 feet, I can clearly see the end of the road, confirming usable stopping distance.

During daytime riding, I run both D3 units through a street-legal headlight modulator. Beyond my own eyes and riding experience, the modulator is one of the most effective safety features I use to be seen.

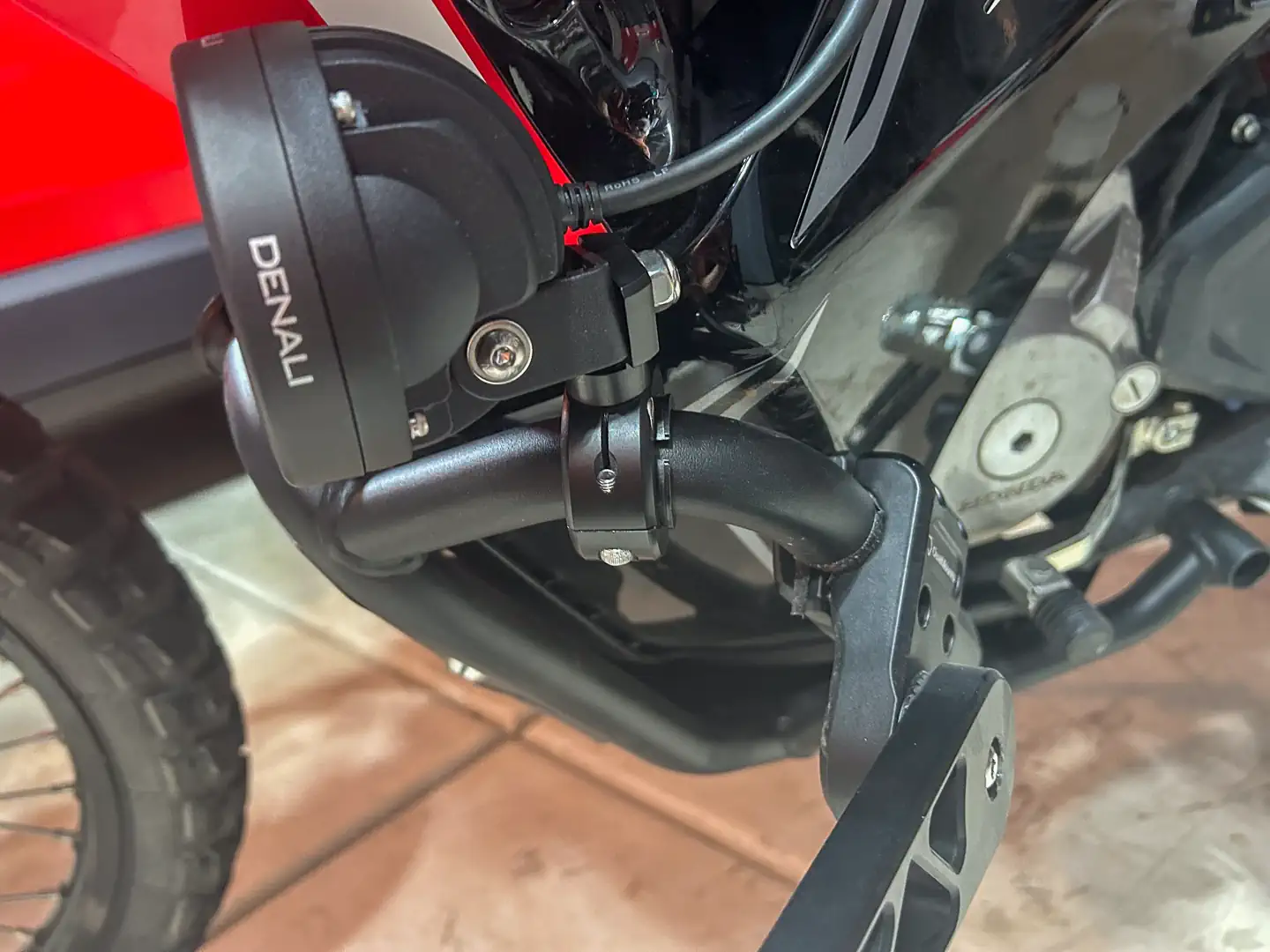

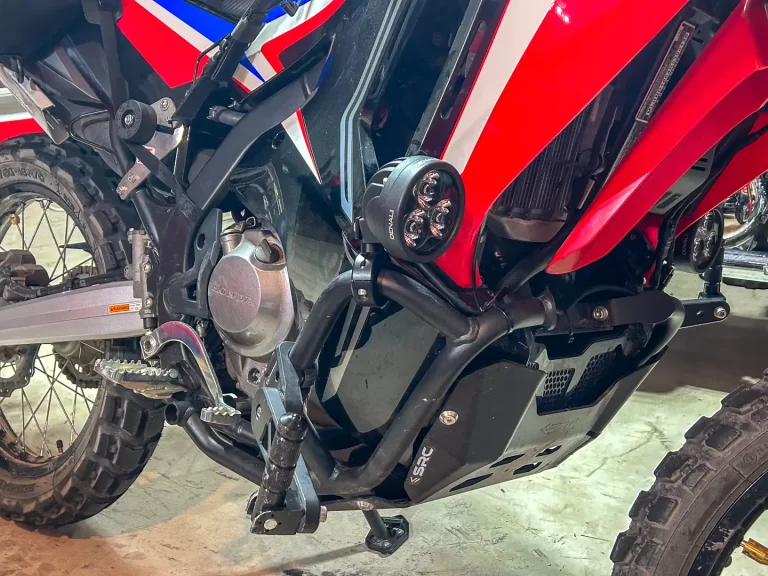

Installation is more about mounting and wire routing than actual wrenching. I wanted to mount the Denali D3 Light Pods as high as possible to get the greatest distance and light patch. The compact CRF300L Rally would only allow me to mount them at the forward high points of the SRC Moto engine guards.

Denali D3 Light Pods Review: Price

I used the Denali articulating Bar mounts (21mm-29mm $93 MSRP) to secure the D3’s and ran the right-pod wire under the radiator to the left side. The right and left D3 lights are connected to the Denali Premium Powersports wiring harness kit ($116), with its integrated waterproof switch and relay wiring harness.

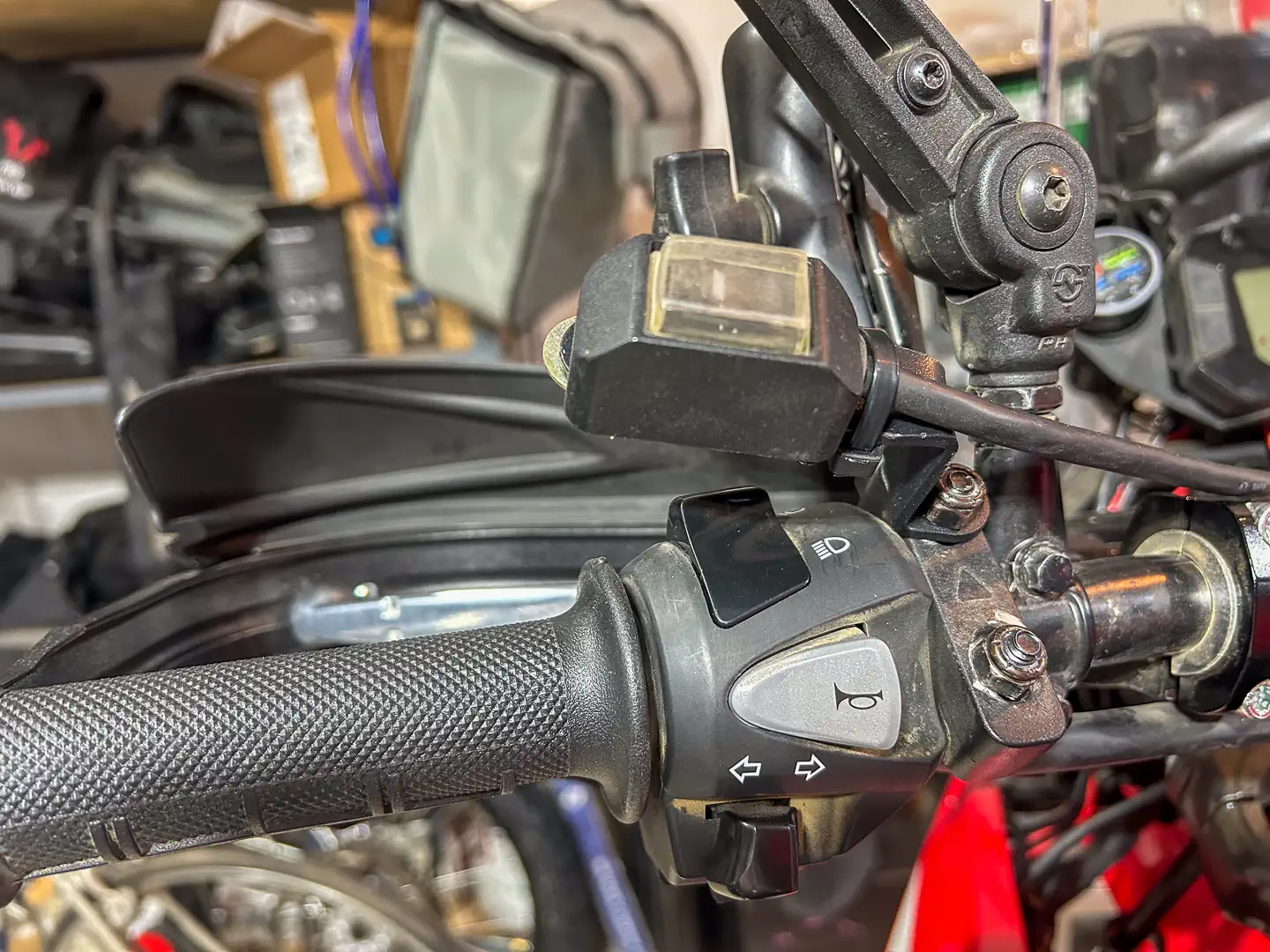

Because I have no more real estate on my left handlebar, I found a third-party L-bracket that positions the switch well above my left thumb. I use the bolt from my secondary “standing” rearview mirror to secure it.

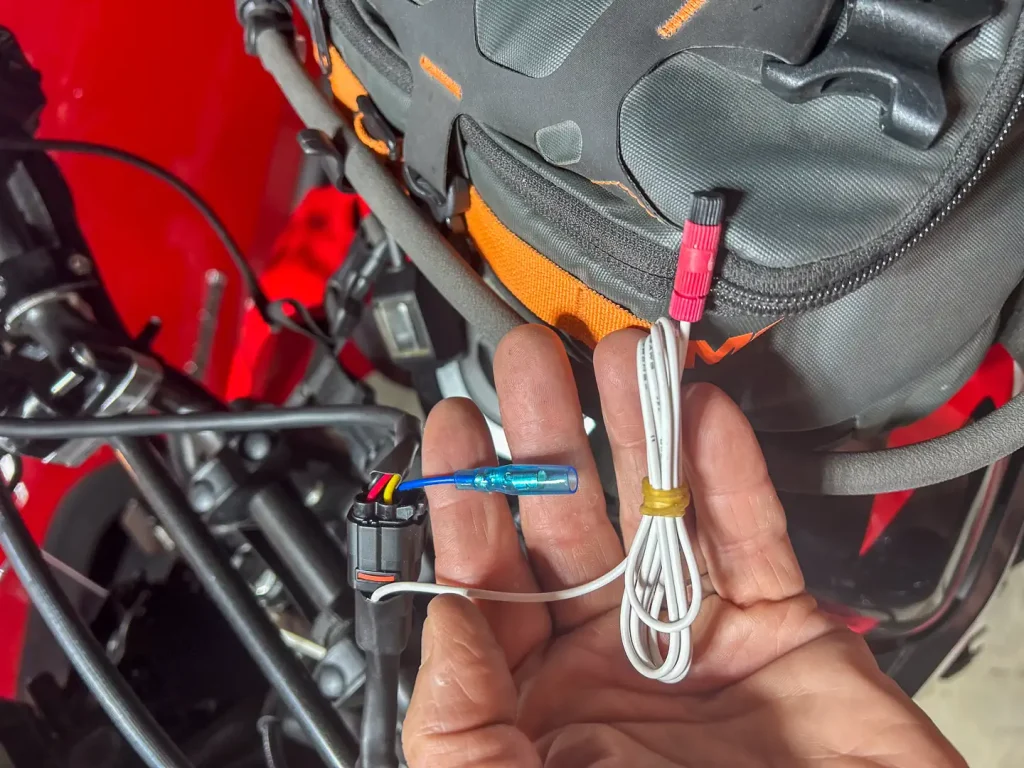

Positive and negative are connected to the HealTech Thunderbox power director under the seat. Because the D3 Light Pods are powered by a relay in the wiring harness, you have to find a switched wire to attach the white trigger wire to. On the 300 Rally, that’s an easy grab on the left cowl. The 300 Rally uses a negative trigger for its high beam activation, the same as the Yamaha Ténéré 700. On the 300 Rally, you cannot connect the supplied blue high beam wire to get the D3 lights to come on when you press the bike’s high beam switch. That blue wire is looking for a +12V line running to the high beam bulb, which doesn’t exist on this bike.

Denali D3 Light Pods Review: Mounting Tips

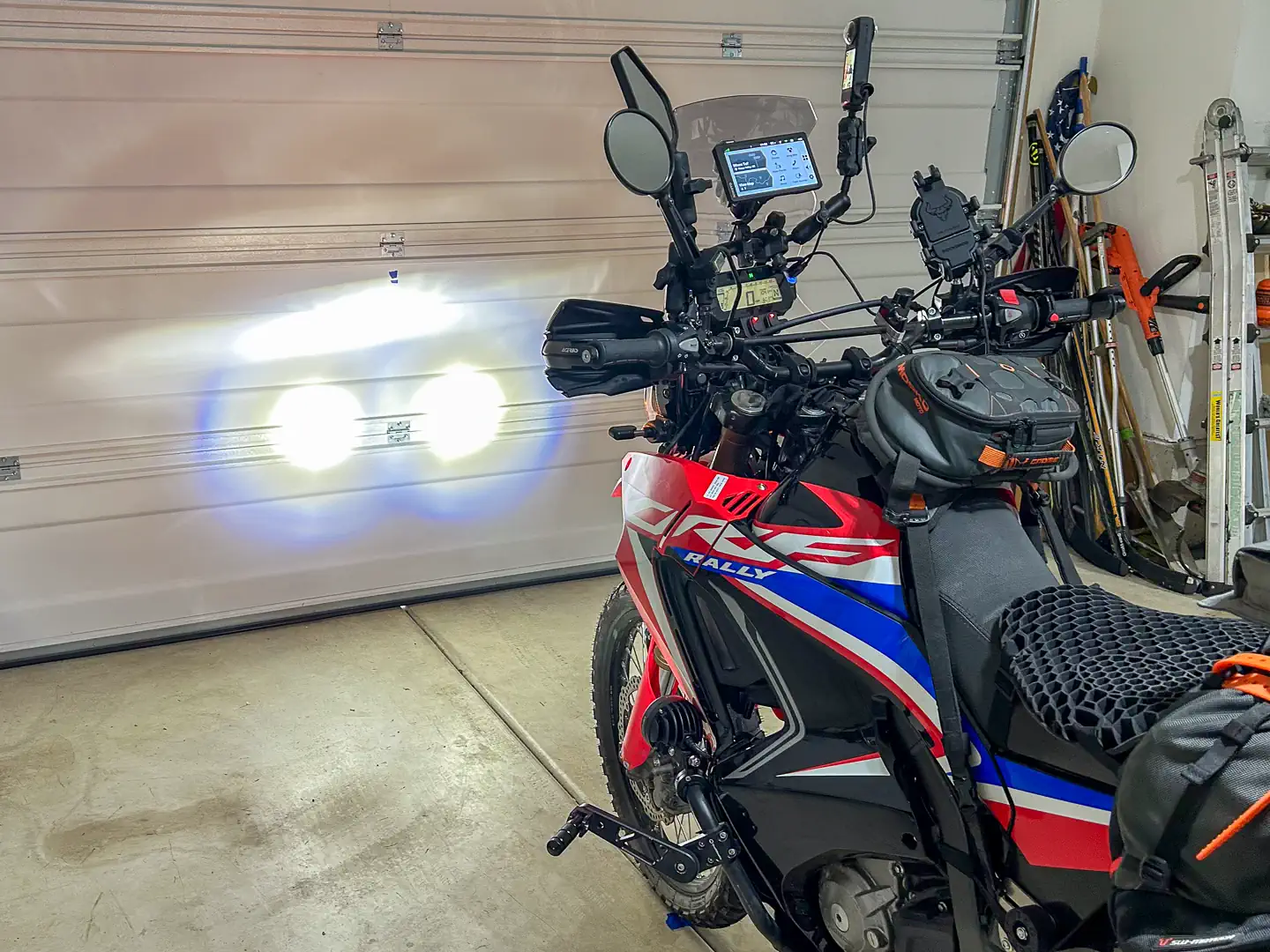

The Denali D3 Light Pods are DOT-legal with the hybrid lens attached, so they have to be properly aimed to prevent blinding oncoming traffic. I used the aiming instructions in the installation guide to set them. Measuring their centers with me on the bike and putting tape on my garage door a half-inch below center, six feet away. The 300 Rally is run off-road, so I suspect the pods will have to be readjusted periodically.

This summer and fall were full of long-day rides starting before dawn and returning after dark. Adding the Denali D3 Light Pods to the Ultimate Motorcycling Honda CRF300L Rally Project Bike improved night-riding comfort. In all my years relying on auxiliary LED lights, I’ve never had a setup that was genuinely street legal until now. That legal compliance is more than a box to tick; it means the pods are engineered to focus light where it’s most useful, without blinding oncoming traffic. That translates directly into confidence on dark highways and peace of mind in backwoods sections where animals and obstacles appear without warning.
